| Part Number | AD7248AQ | AD7248ATQ | AD7243AQ | AD7244AQ | AD7245AQ | AD7247AQ | AD7248AAQ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Obsolete | Active | Active | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 | 14 | 12 | 12 | 12 |
| Number of D/A Converters | 1 | 1 | 1 | 2 | 1 | 2 | 1 |
| Settling Time | 5µs, 10µs | 10µs | 10µs | 4µs | 5µs, 10µs | 10µs | 7µs |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No | No | No | No |
| Data Interface | Parallel | Parallel | DSP, SPI | SPI | Parallel | Parallel | Parallel |
| Reference Type | Internal | Internal | External, Internal | External, Internal | Internal | External, Internal | Internal |
| Voltage - Supply, Analog | ±14.25V ~ 15.75V | ±10.8V ~ 16.5V | 12V ~ 15V | ±5V | ±14.25V ~ 15.75V | ±15V | ±10.8V ~ 16.5V |
| Voltage - Supply, Digital | 14.25V ~ 15.75V | 10.8V ~ 16.5V | - | - | 14.25V ~ 15.75V | 15V | ±10.8V ~ 16.5V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) | ±0.75 (Max), ±1 (Max) | ±0.5, ±0.9 | ±2 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±0.9 (Max) | ±0.75, ±1 |
| Architecture | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R | Multiplying DAC |
| Operating Temperature | -25°C ~ 85°C | -55°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C | -25°C ~ 85°C | -55°C ~ 125°C | -40°C ~ 85°C |

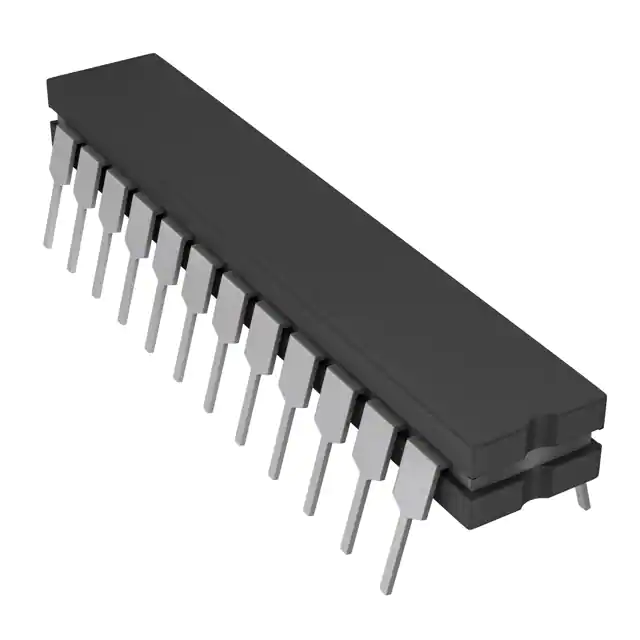

| Package / Case | 24-CDIP (0.300", 7.62mm) | 24-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 24-CDIP (0.300", 7.62mm) | 24-CDIP (0.300", 7.62mm) | 24-CDIP (0.300", 7.62mm) | 20-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 24-CDIP | 24-CDIP | 16-CERDIP | 24-CDIP | 24-CDIP | 24-CDIP | 20-CERDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
