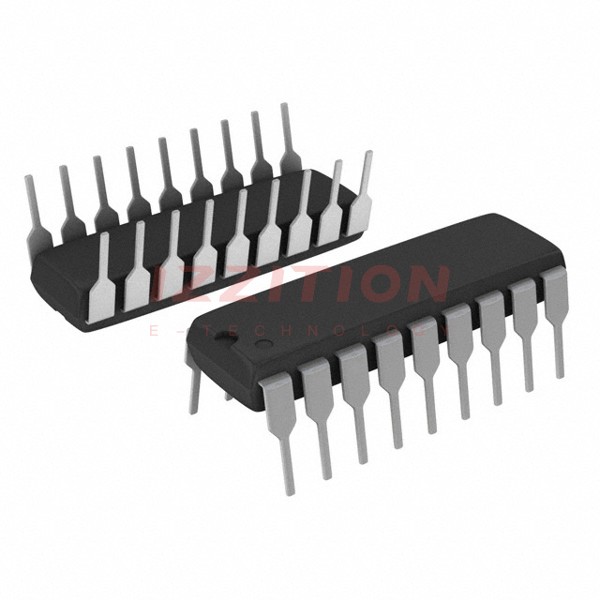

| Part Number | AD7224KNZ | AD7224KPZ | AD7225KNZ | AD7226KNZ | AD7228KNZ | AD7224LNZ | AD7224KN |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete |
| Number of Bits | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Number of D/A Converters | 1 | 1 | 4 | 4 | 8 | 1 | 1 |
| Settling Time | 20µs | 20µs | 4µs | 4µs | 5µs, 7µs | 20µs | 20µs |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No | No | No | No |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Reference Type | External | External | External | External | External | External | External |
| Voltage - Supply, Analog | 11.4V ~ 16.5V, ±5V | 11.4V ~ 16.5V, ±5V | 11.4V ~ 16.5V, -5V | 11.4V ~ 16.5V, -5V | 10.8V ~ 16.5V, -5V | 11.4V ~ 16.5V, ±5V | 11.4V ~ 16.5V, ±5V |
| Voltage - Supply, Digital | 14.25V ~ 15.75V | 14.25V ~ 15.75V | 14.25V ~ 15.75V | 14.25V ~ 15.75V | 13.5V ~ 16.5V | 14.25V ~ 15.75V | 14.25V ~ 15.75V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 18-DIP (0.300", 7.62mm) | 20-LCC (J-Lead) | 24-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 18-DIP (0.300", 7.62mm) | 18-DIP (0.300", 7.62mm) |
| Supplier Device Package | 18-PDIP | 20-PLCC (9x9) | 24-PDIP | 20-PDIP | 24-PDIP | 18-PDIP | 18-PDIP |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
