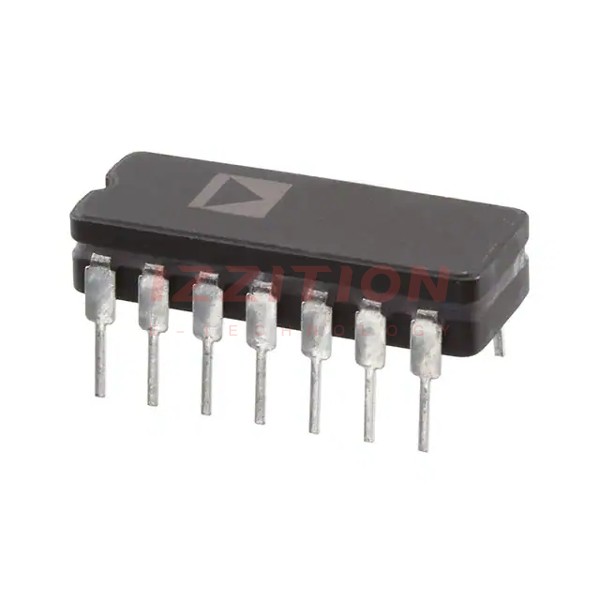

| Part Number | AD713AQ | AD711AQ | AD712AQ |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Amplifier Type | J-FET | J-FET | J-FET |
| Number of Circuits | 4 | 1 | 2 |
| Output Type | - | - | - |
| Slew Rate | 20V/µs | 20V/µs | 20V/µs |
| Gain Bandwidth Product | - | - | - |
| -3db Bandwidth | 4 MHz | 4 MHz | 4 MHz |
| Current - Input Bias | 10 pA | 15 pA | 25 pA |
| Voltage - Input Offset | 300 µV | 300 µV | 300 µV |
| Current - Supply | 10mA | 2.5mA | 5mA |
| Current - Output / Channel | 25 mA | 25 mA | 25 mA |
| Voltage - Supply Span (Min) | 9 V | 9 V | 9 V |
| Voltage - Supply Span (Max) | 36 V | 36 V | 36 V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | 14-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 14-CERDIP | 8-CERDIP | 8-CERDIP |
