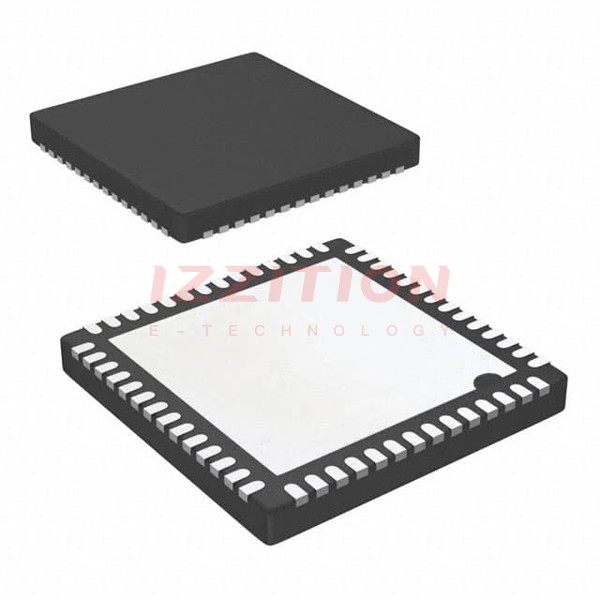

| Part Number | AD7134BCPZ | AD7194BCPZ |
|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Not For New Designs | Active |
| Number of Bits | 24 | 24 |
| Sampling Rate (Per Second) | 1.5M | - |
| Number of Inputs | 4 | 8, 16 |
| Input Type | Differential, Single Ended | Differential, Pseudo-Differential |
| Data Interface | DSP, MICROWIRE, QSPI, Serial, SPI | SPI, DSP |
| Configuration | ADC | MUX-PGA-ADC |
| Ratio - S/H:ADC | 0:1 | - |
| Number of A/D Converters | 1 | 1 |
| Architecture | SAR | Sigma-Delta |
| Reference Type | External | External |
| Voltage - Supply, Analog | 4.5V ~ 5.5V | 3V ~ 5.25V |
| Voltage - Supply, Digital | 1.65V ~ 1.95V | 2.7V ~ 5.25V |
| Features | Simultaneous Sampling | PGA |
| Operating Temperature | 0°C ~ 85°C | -40°C ~ 105°C |
| Package / Case | 56-WFQFN Exposed Pad, CSP | 32-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 56-LFCSP-WQ (8x8) | 32-LFCSP (5x5) |
| Mounting Type | Surface Mount | Surface Mount |
