| Part Number | AD712AH | AD712BH | AD712CH | AD712AQ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Amplifier Type | J-FET | J-FET | J-FET | J-FET |
| Number of Circuits | 2 | 2 | 2 | 2 |
| Output Type | - | - | - | - |
| Slew Rate | 20V/µs | 20V/µs | 20V/µs | 20V/µs |
| Gain Bandwidth Product | 4 MHz | 4 MHz | 4 MHz | - |
| -3db Bandwidth | 4 MHz | 4 MHz | 4 MHz | 4 MHz |
| Current - Input Bias | 25 pA | 25 pA | 25 pA | 25 pA |
| Voltage - Input Offset | 300 µV | 300 µV | 300 µV | 300 µV |
| Current - Supply | 5mA | 5mA | 5mA | 5mA |
| Current - Output / Channel | 25 mA | 25 mA | 25 mA | 25 mA |
| Voltage - Supply Span (Min) | 9 V | 9 V | 9 V | 9 V |
| Voltage - Supply Span (Max) | 36 V | 36 V | 36 V | 36 V |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |

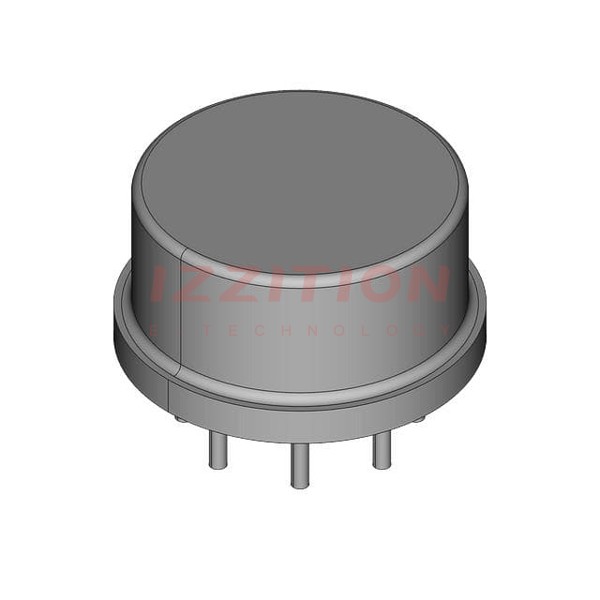

| Package / Case | TO-99-8 Metal Can | TO-99-8 Metal Can | TO-99-8 Metal Can | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | TO-99 | TO-99 | TO-99 | 8-CERDIP |
