| Part Number | AD7124-8BBCPZ | AD7124-8BCPZ | AD7124-4BBCPZ |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Number of Bits | 24 | 24 | 24 |
| Sampling Rate (Per Second) | 19.2k | 19.2k | 19.2k |
| Number of Inputs | 8, 15, 16 | 8, 15, 16 | 4, 7 |
| Input Type | Differential, Pseudo-Differential, Single Ended | Differential, Pseudo-Differential, Single Ended | Differential, Pseudo-Differential, Single Ended |
| Data Interface | DSP, MICROWIRE™, QSPI™, and SPI™ | SPI, DSP | DSP, MICROWIRE™, QSPI™, and SPI™ |
| Configuration | MUX-PGA-ADC | MUX-PGA-ADC | MUX-PGA-ADC |
| Ratio - S/H:ADC | 0:1 | - | 0:1 |
| Number of A/D Converters | 1 | 1 | 1 |
| Architecture | Sigma-Delta | Sigma-Delta | Sigma-Delta |
| Reference Type | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | ±1.8V, 2.7V ~ 3.6V | ±1.8V, 2.7V ~ 3.6V | 2.7V ~ 3.6V, ±1.8V |
| Voltage - Supply, Digital | 1.65V ~ 3.6V | 1.65V ~ 3.6V | 1.65V ~ 3.6V |
| Features | PGA, Temperature Sensor | PGA, Temperature Sensor | PGA, Temperature Sensor |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |

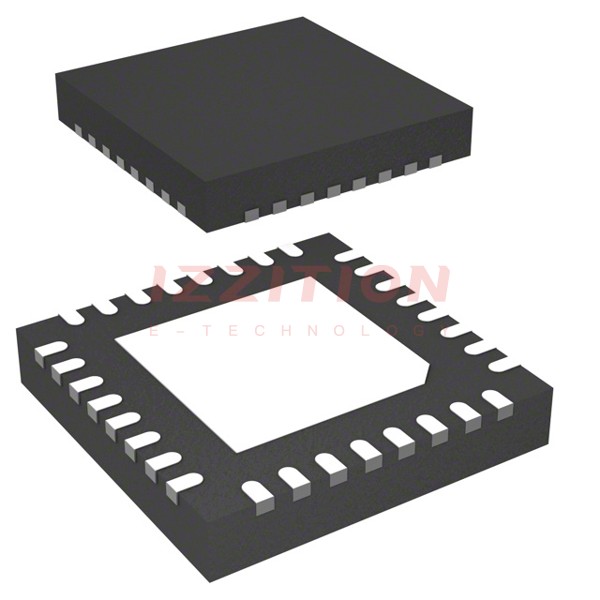

| Package / Case | 32-VFQFN Exposed Pad, CSP | 32-WFQFN Exposed Pad, CSP | 32-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 32-LFCSP (5x5) | 32-LFCSP (5x5) | 32-LFCSP (5x5) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
