Please send RFQ , we will respond immediately.

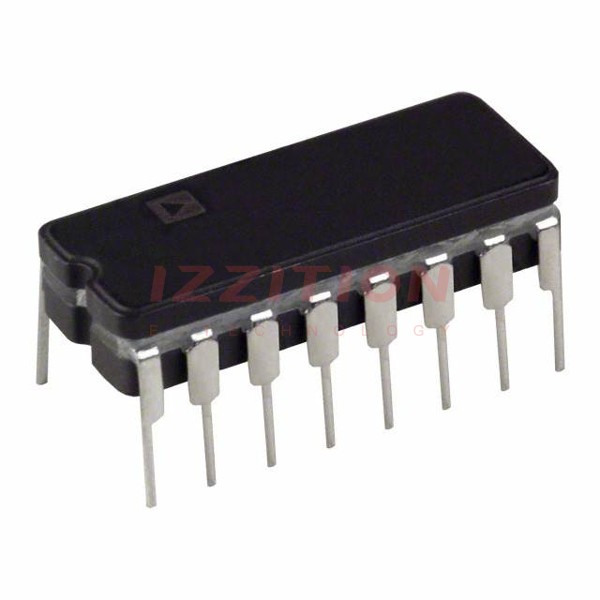

| Part Number | AD688BQ | AD688SQ | AD588BQ | AD688AQ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Reference Type | Series | Series, Buried Zener | Series | Series |
| Output Type | Fixed | Fixed | Programmable | Fixed |
| Voltage - Output (Min/Fixed) | ±10V | ±10V | ±5V, ±10V | ±10V |
| Voltage - Output (Max) | - | - | - | - |
| Current - Output | 10 mA | 10 mA | 10 mA | 10 mA |
| Tolerance | ±0.02% | - | ±0.01% | ±0.05% |
| Temperature Coefficient | 3ppm/°C | - | 3ppm/°C | 3ppm/°C |
| Noise - 0.1Hz to 10Hz | 6µVp-p | - | 6µVp-p | 6µVp-p |
| Noise - 10Hz to 10kHz | - | - | - | - |
| Voltage - Input | 12V ~ 38V | - | 10.8V ~ 36V | 12V ~ 38V |
| Current - Supply | 12mA | - | 10mA | 12mA |
| Current - Cathode | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -55°C ~ 125°C (TA) | -25°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP | 16-CERDIP | 16-CERDIP | 16-CERDIP |
