Please send RFQ , we will respond immediately.

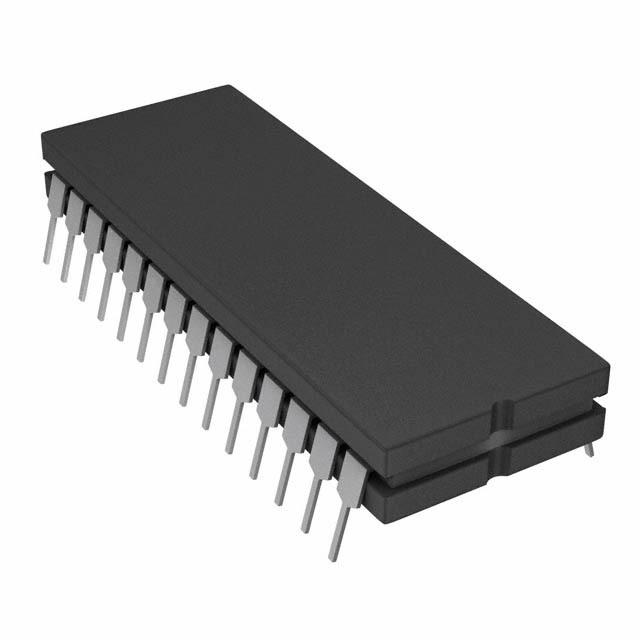

| Part Number | AD669SQ | AD660SQ | AD668SQ |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Number of Bits | 16 | 16 | 12 |
| Number of D/A Converters | 1 | 1 | 1 |
| Settling Time | 13µs | 13µs | - |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Unbuffered |
| Differential Output | No | No | No |
| Data Interface | Parallel | SPI | Parallel |
| Reference Type | External, Internal | External, Internal | External |
| Voltage - Supply, Analog | ±13.5V ~ 16.5V | ±13.5V ~ 16.5V | - |
| Voltage - Supply, Digital | 4.5V ~ 5.5V | 5V | - |
| INL/DNL (LSB) | ±4 (Max), ±4 (Max) | ±4 (Max), ±4 (Max) | ±0.25LSB (Max), ±0.5 (Max) |
| Architecture | R-2R | R-2R | Multiplying DAC |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 28-CDIP (0.600", 15.24mm) | 24-CDIP (0.300", 7.62mm) | 24-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 28-CDIP | 24-CDIP | 24-CDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole |
