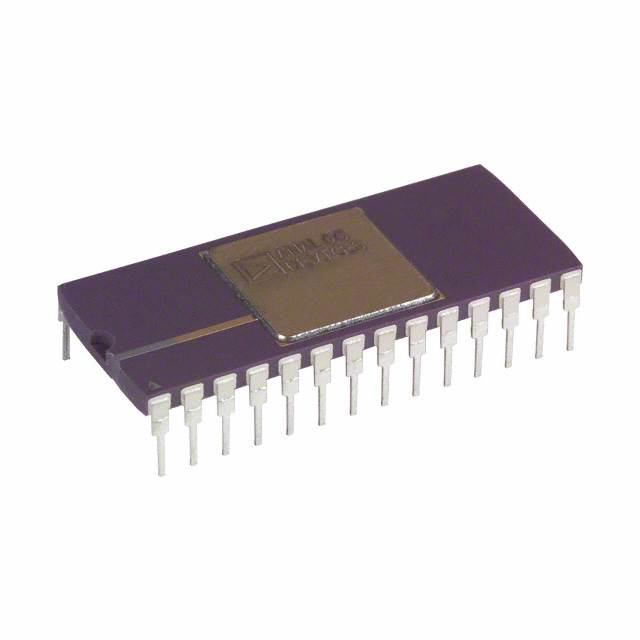

| Part Number | AD664TD-UNI | AD664AD-UNI | AD664BD-UNI | AD664SD-UNI |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Active | Obsolete |
| Number of Bits | 12 | 12 | 12 | 12 |
| Number of D/A Converters | 4 | 4 | 4 | 4 |
| Settling Time | 10µs | 10µs | 10µs | 10µs |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No |
| Data Interface | Parallel | Parallel | Parallel | Parallel |
| Reference Type | External | External | External | External |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | 5V | 5V | 5V | 5V |
| INL/DNL (LSB) | ±0.5, ±0.5 (Max) | ±0.75, ±0.75 (Max) | ±0.5, ±0.5 (Max) | ±0.75, ±0.75 (Max) |
| Architecture | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -55°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 125°C |
| Package / Case | 28-CDIP (0.600", 15.24mm) | 28-CDIP (0.600", 15.24mm) | 28-CDIP (0.600", 15.24mm) | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP | 28-CDIP | 28-CDIP | 28-CDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
