Please send RFQ , we will respond immediately.

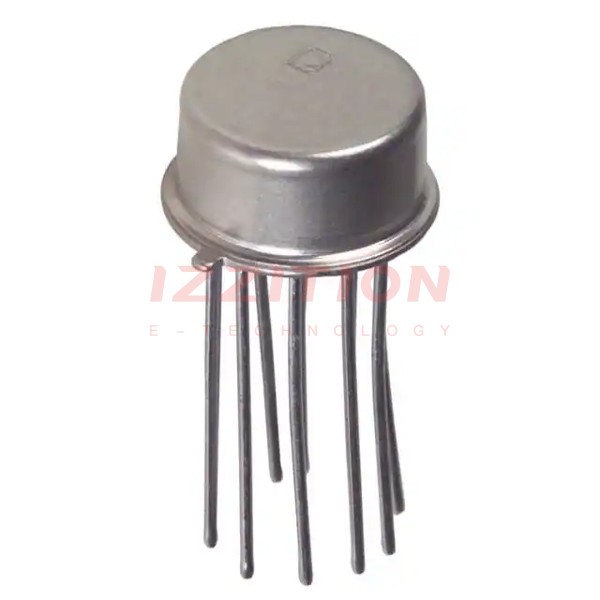

| Part Number | AD597AH | AD597AR | AD597AHZ | AD596AH |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Obsolete | Active | Obsolete |
| Function | Thermocouple Conditioner | Thermocouple Conditioner | Thermocouple Conditioner | Thermocouple Conditioner |
| Sensor Type | External | External | External | External |
| Sensing Temperature | -200°C ~ 1250°C | -200°C ~ 1250°C | -200°C ~ 1250°C | -200°C ~ 760°C |
| Accuracy | - | - | ±4°C(Max) | - |
| Topology | Ice Point Compensation | Ice Point Compensation | Ice Point Compensation | Ice Point Compensation |
| Output Type | Voltage | Voltage | Voltage | Voltage |
| Output Alarm | Yes | Yes | Yes | Yes |
| Output Fan | No | No | No | No |
| Voltage - Supply | 5V ~ 30V | 5V ~ 30V | 5V ~ 30V | 5V ~ 30V |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole |
| Package / Case | TO-100-10 Metal Can | 8-SOIC (0.154", 3.90mm Width) | TO-100-10 Metal Can | TO-100-10 Metal Can |
| Supplier Device Package | TO-100-10 | 8-SOIC | TO-100-10 | TO-100-10 |
