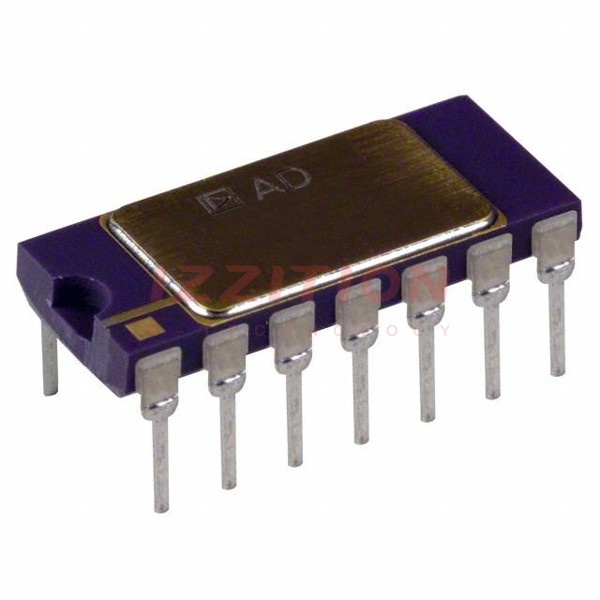

| Part Number | AD594CDZ | AD595CDZ | AD594ADZ | AD594CD |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Obsolete |
| Function | Thermocouple Amplifier | Thermocouple Amplifier | Thermocouple Amplifier | Thermocouple Amplifier |
| Sensor Type | External | External | External | External |
| Sensing Temperature | - | - | - | - |
| Accuracy | ±1°C(Max) | ±1°C(Max) | ±3°C(Max) | - |
| Topology | Ice Point Compensation, Overload Detection | Ice Point Compensation, Overload Detection | Ice Point Compensation, Overload Detection | Ice Point Compensation, Overload Detection |
| Output Type | Voltage | Voltage | Voltage | Voltage |
| Output Alarm | Yes | Yes | Yes | Yes |
| Output Fan | No | No | No | No |
| Voltage - Supply | 5V ~ ±15V | 5V ~ ±15V | 5V ~ ±15V | 5V ~ ±15V |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 14-CDIP (0.300", 7.62mm) | 14-CDIP (0.300", 7.62mm) | 14-CDIP (0.300", 7.62mm) | 14-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 14-CDIP | 14-CDIP | 14-CDIP | 14-CDIP |
