AD589MH
  • Share:

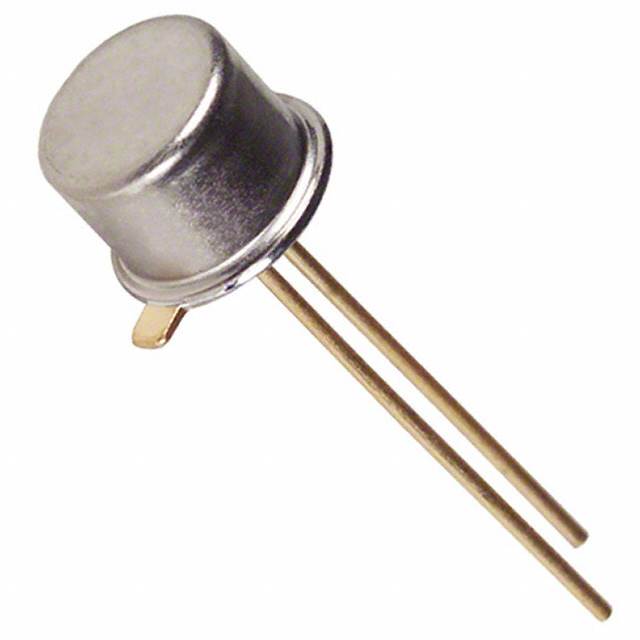

Analog Devices Inc. AD589MH

Manufacturer No:
AD589MH
Manufacturer:
Analog Devices Inc.
Package:
Bulk
Datasheet:
AD589MH Datasheet
ECAD Model:
-
Description:
IC VREF SHUNT -2.83%/+1.22% TO51
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Reference Type:Shunt
Output Type:Fixed
Voltage - Output (Min/Fixed):1.235V
Voltage - Output (Max):-
Current - Output:5 mA
Tolerance:-2.83%, +1.22%
Temperature Coefficient:10ppm/°C
Noise - 0.1Hz to 10Hz:-
Noise - 10Hz to 10kHz:5µVrms
Voltage - Input:-
Current - Supply:-
Current - Cathode:50 µA
Operating Temperature:0°C ~ 70°C (TA)
Mounting Type:Through Hole
Package / Case:TO-51-2 Metal Can
Supplier Device Package:TO-51-2
0 Remaining View Similar

In Stock

-
81

Please send RFQ , we will respond immediately.

Similar Products

Part Number AD589MH AD589TH   AD589SH   AD589JH   AD589KH   AD589LH
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc.
Product Status Active Active Active Active Active Obsolete
Reference Type Shunt Shunt Shunt Shunt Shunt -
Output Type Fixed Fixed Fixed Fixed Fixed -
Voltage - Output (Min/Fixed) 1.235V 1.235V 1.235V 1.235V 1.235V -
Voltage - Output (Max) - - - - - -
Current - Output 5 mA 5 mA 5 mA 5 mA 5 mA -
Tolerance -2.83%, +1.22% -2.83%, +1.22% -2.83%, +1.22% -2.83%, +1.22% -2.83%, +1.22% -
Temperature Coefficient 10ppm/°C 50ppm/°C 100ppm/°C 100ppm/°C 50ppm/°C -
Noise - 0.1Hz to 10Hz - - - - - -
Noise - 10Hz to 10kHz 5µVrms 5µVrms 5µVrms 5µVrms 5µVrms -
Voltage - Input - - - - - -
Current - Supply - - - - - -
Current - Cathode 50 µA 50 µA 50 µA 50 µA 50 µA -
Operating Temperature 0°C ~ 70°C (TA) -55°C ~ 125°C (TA) -55°C ~ 125°C (TA) 0°C ~ 70°C (TA) 0°C ~ 70°C (TA) -
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
Package / Case TO-51-2 Metal Can TO-51-2 Metal Can TO-51-2 Metal Can TO-51-2 Metal Can TO-51-2 Metal Can TO-51-2 Metal Can
Supplier Device Package TO-51-2 TO-51-2 TO-51-2 TO-51-2 TO-51-2 TO-51-2
