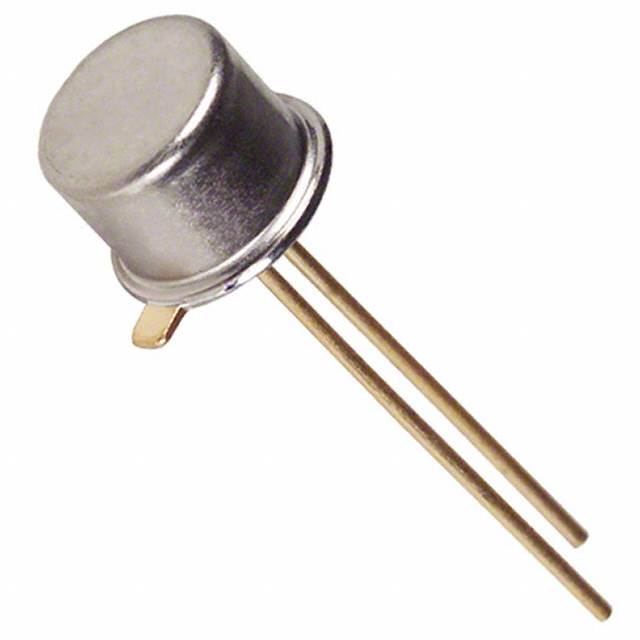

| Part Number | AD589KH | AD589TH | AD589MH | AD589LH | AD589SH | AD580KH | AD581KH | AD584KH | AD589JH |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Obsolete | Active | Active | Active | Active | Active |
| Reference Type | Shunt | Shunt | Shunt | - | Shunt | Series | Series | Series | Shunt |
| Output Type | Fixed | Fixed | Fixed | - | Fixed | Fixed | Fixed | Programmable | Fixed |
| Voltage - Output (Min/Fixed) | 1.235V | 1.235V | 1.235V | - | 1.235V | 2.5V | 10V | 2.5V, 5V, 7.5V, 10V | 1.235V |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - | - |
| Current - Output | 5 mA | 5 mA | 5 mA | - | 5 mA | 10 mA | 10 mA | 10 mA | 5 mA |
| Tolerance | -2.83%, +1.22% | -2.83%, +1.22% | -2.83%, +1.22% | - | -2.83%, +1.22% | ±1% | ±0.1% | ±0.1% | -2.83%, +1.22% |
| Temperature Coefficient | 50ppm/°C | 50ppm/°C | 10ppm/°C | - | 100ppm/°C | 40ppm/°C | 15ppm/°C | 15ppm/°C | 100ppm/°C |
| Noise - 0.1Hz to 10Hz | - | - | - | - | - | 8µVp-p | 40µVp-p | 50µVp-p | - |
| Noise - 10Hz to 10kHz | 5µVrms | 5µVrms | 5µVrms | - | 5µVrms | - | - | - | 5µVrms |
| Voltage - Input | - | - | - | - | - | 4.5V ~ 30V | 13V ~ 30V | 4.5V ~ 30V | - |
| Current - Supply | - | - | - | - | - | 1.5mA | 1mA | 1mA | - |
| Current - Cathode | 50 µA | 50 µA | 50 µA | - | 50 µA | - | - | - | 50 µA |
| Operating Temperature | 0°C ~ 70°C (TA) | -55°C ~ 125°C (TA) | 0°C ~ 70°C (TA) | - | -55°C ~ 125°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-51-2 Metal Can | TO-51-2 Metal Can | TO-51-2 Metal Can | TO-51-2 Metal Can | TO-51-2 Metal Can | TO-206AC, TO-52-3 Metal Can | TO-205AA, TO-5-3 Metal Can | TO-99-8 Metal Can | TO-51-2 Metal Can |
| Supplier Device Package | TO-51-2 | TO-51-2 | TO-51-2 | TO-51-2 | TO-51-2 | TO-52-3 | TO-5-3 | TO-99-8 | TO-51-2 |
