| Part Number | AD5821BCBZ-REEL7 | AD5821ABCBZ-REEL7 | AD5821BCBZ-REEL |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Obsolete |
| Number of Bits | 10 | 10 | 10 |
| Number of D/A Converters | 1 | 1 | 1 |
| Settling Time | 250µs (Typ) | 250µs (Typ) | 250µs (Typ) |
| Output Type | Current - Buffered | Current - Buffered | Current - Buffered |
| Differential Output | No | No | No |
| Data Interface | I²C | I²C | I²C |
| Reference Type | Internal | Internal | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±1.5, ±1 (Max) | ±1.5, ±1 (Max) | ±1.5, ±1 (Max) |
| Architecture | Current Sink | Current Sink | Current Sink |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

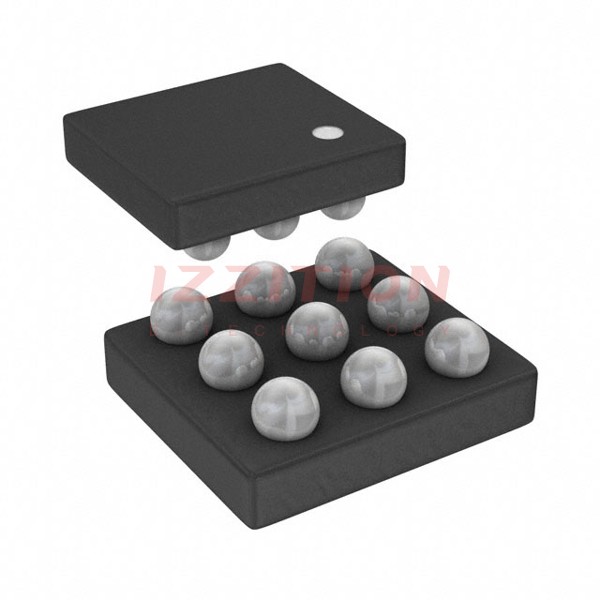

| Package / Case | 9-UFBGA, WLCSP | 9-UFBGA, WLCSP | 9-UFBGA, WLCSP |
| Supplier Device Package | 9-WLCSP (1.52x1.69) | 9-WLCSP (1.52x1.69) | 9-WLCSP (1.52x1.69) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
