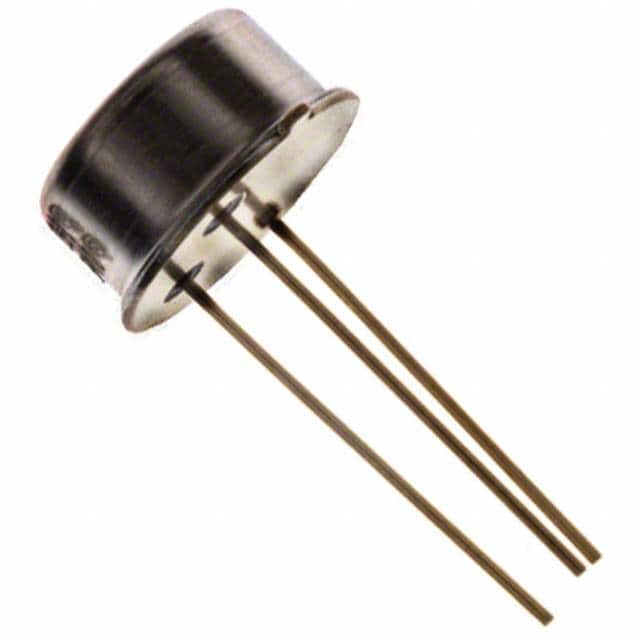

| Part Number | AD581LH | AD581UH | AD581SH | AD581TH | AD584LH | AD589LH | AD580LH | AD581JH | AD581KH |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Obsolete | Obsolete | Active | Active | Active |
| Reference Type | Series | Series | Series | Series | - | - | Series | Series | Series |
| Output Type | Fixed | Fixed | Fixed | Fixed | - | - | Fixed | Fixed | Fixed |
| Voltage - Output (Min/Fixed) | 10V | 10V | 10V | 10V | - | - | 2.5V | 10V | 10V |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - | - |
| Current - Output | 10 mA | 10 mA | 10 mA | 10 mA | - | - | 10 mA | 10 mA | 10 mA |
| Tolerance | ±0.05% | ±0.05% | ±0.3% | ±0.1% | - | - | ±0.4% | ±0.3% | ±0.1% |
| Temperature Coefficient | 5ppm/°C | 10ppm/°C | 30ppm/°C | 15ppm/°C | - | - | 25ppm/°C | 30ppm/°C | 15ppm/°C |
| Noise - 0.1Hz to 10Hz | 40µVp-p | 40µVp-p | 40µVp-p | 40µVp-p | - | - | 8µVp-p | 40µVp-p | 40µVp-p |
| Noise - 10Hz to 10kHz | - | - | - | - | - | - | - | - | - |
| Voltage - Input | 13V ~ 30V | 13V ~ 30V | 13V ~ 30V | 13V ~ 30V | - | - | 4.5V ~ 30V | 13V ~ 30V | 13V ~ 30V |
| Current - Supply | 1mA | 1mA | 1mA | 1mA | - | - | 1.5mA | 1mA | 1mA |
| Current - Cathode | - | - | - | - | - | - | - | - | - |
| Operating Temperature | 0°C ~ 70°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | - | - | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-205AA, TO-5-3 Metal Can | TO-205AA, TO-5-3 Metal Can | TO-205AA, TO-5-3 Metal Can | TO-205AA, TO-5-3 Metal Can | TO-99-8 Metal Can | TO-51-2 Metal Can | TO-206AC, TO-52-3 Metal Can | TO-205AA, TO-5-3 Metal Can | TO-205AA, TO-5-3 Metal Can |
| Supplier Device Package | TO-5-3 | TO-5-3 | TO-5-3 | TO-5-3 | TO-99-8 | TO-51-2 | TO-52-3 | TO-5-3 | TO-5-3 |
