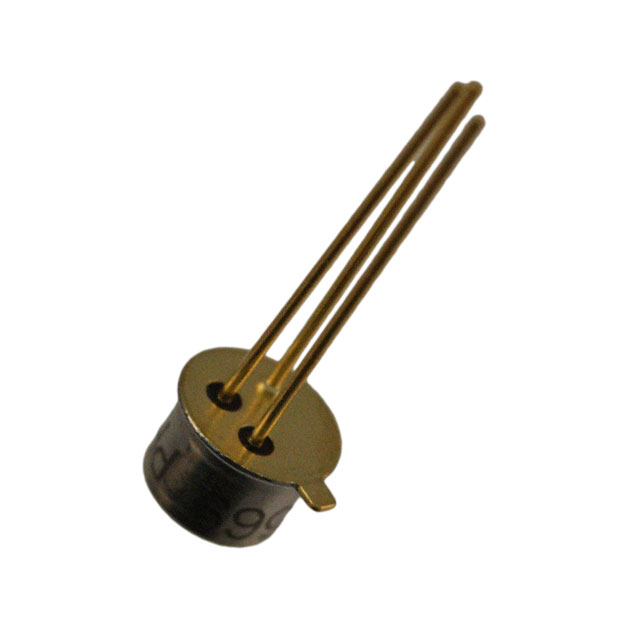

| Part Number | AD580SH | AD584SH | AD580UH | AD580TH | AD581SH | AD589SH | AD580JH | AD580KH | AD580LH |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Reference Type | Series | Series | Series | Series | Series | Shunt | Series | Series | Series |
| Output Type | Fixed | Programmable | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Voltage - Output (Min/Fixed) | 2.5V | 2.5V, 5V, 7.5V, 10V | 2.5V | 2.5V | 10V | 1.235V | 2.5V | 2.5V | 2.5V |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - | - |
| Current - Output | 10 mA | 10 mA | 10 mA | 10 mA | 10 mA | 5 mA | 10 mA | 10 mA | 10 mA |
| Tolerance | ±1% | ±0.3% | ±0.4% | ±0.4% | ±0.3% | -2.83%, +1.22% | ±3% | ±1% | ±0.4% |
| Temperature Coefficient | 55ppm/°C | 30ppm/°C | 10ppm/°C | 25ppm/°C | 30ppm/°C | 100ppm/°C | 85ppm/°C | 40ppm/°C | 25ppm/°C |
| Noise - 0.1Hz to 10Hz | 8µVp-p | 50µVp-p | 8µVp-p | 8µVp-p | 40µVp-p | - | 8µVp-p | 8µVp-p | 8µVp-p |
| Noise - 10Hz to 10kHz | - | - | - | - | - | 5µVrms | - | - | - |
| Voltage - Input | 4.5V ~ 30V | 4.5V ~ 30V | 4.5V ~ 30V | 4.5V ~ 30V | 13V ~ 30V | - | 4.5V ~ 30V | 4.5V ~ 30V | 4.5V ~ 30V |
| Current - Supply | 1.5mA | 1mA | 1.5mA | 1.5mA | 1mA | - | 1.5mA | 1.5mA | 1.5mA |
| Current - Cathode | - | - | - | - | - | 50 µA | - | - | - |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-206AC, TO-52-3 Metal Can | TO-99-8 Metal Can | TO-206AC, TO-52-3 Metal Can | TO-206AC, TO-52-3 Metal Can | TO-205AA, TO-5-3 Metal Can | TO-51-2 Metal Can | TO-206AC, TO-52-3 Metal Can | TO-206AC, TO-52-3 Metal Can | TO-206AC, TO-52-3 Metal Can |
| Supplier Device Package | TO-52-3 | TO-99-8 | TO-52-3 | TO-52-3 | TO-5-3 | TO-51-2 | TO-52-3 | TO-52-3 | TO-52-3 |
