Please send RFQ , we will respond immediately.

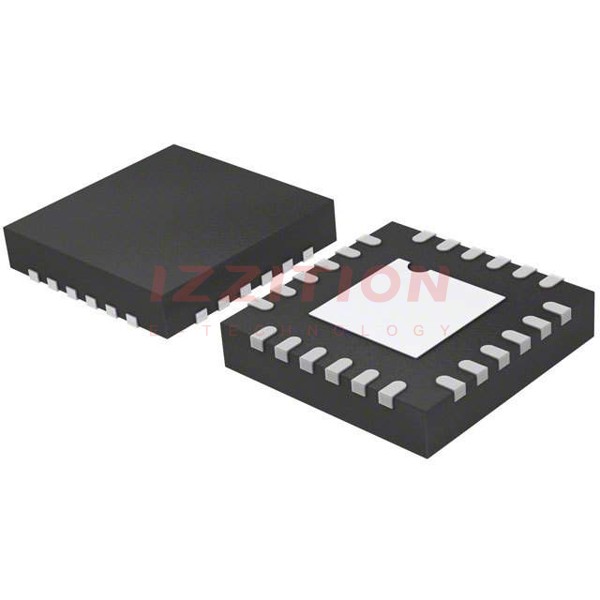

| Part Number | AD5780BCPZ | AD5790BCPZ | AD5760BCPZ | AD5780ACPZ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Number of Bits | 18 | 20 | 16 | 18 |
| Number of D/A Converters | 1 | 1 | 1 | 1 |
| Settling Time | 3.5µs (Typ) | 3.5µs (Typ) | 3.5µs (Typ) | 3.5µs (Typ) |
| Output Type | Voltage - Unbuffered | Voltage - Unbuffered | Voltage - Unbuffered | Voltage - Unbuffered |
| Differential Output | No | No | No | No |
| Data Interface | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP |
| Reference Type | External | External | External | External |
| Voltage - Supply, Analog | 7.5V ~ 16.5V, -2.5V ~ 16.5V | 7.5V ~ 16.5V, -2.5V ~ 16.5V | 7.5V ~ 16.5V, -2.5V ~ 16.5V | 7.5V ~ 16.5V, -2.5V ~ 16.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±1 (Max), ±0.75 (Max) | ±1.2, -1/+3 | ±2 (Max), ±1 (Max) | ±2 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Package / Case | 24-VFQFN Exposed Pad, CSP | 24-VFQFN Exposed Pad, CSP | 24-VFQFN Exposed Pad, CSP | 24-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP-VQ (4x5) | 24-LFCSP-VQ (4x5) | 24-LFCSP-VQ (4x5) | 24-LFCSP-VQ (4x5) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
