Please send RFQ , we will respond immediately.

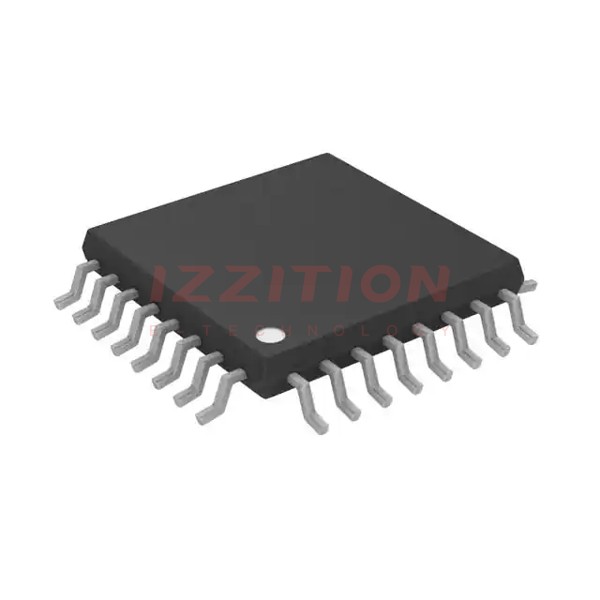

| Part Number | AD5764RCSUZ | AD5744RCSUZ | AD5762RCSUZ | AD5764CSUZ | AD5764RBSUZ |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Number of Bits | 16 | 14 | 16 | 16 | 16 |
| Number of D/A Converters | 4 | 4 | 2 | 4 | 4 |
| Settling Time | 10µs | 10µs | 10µs | 10µs | 10µs |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No | No |
| Data Interface | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP |
| Reference Type | External, Internal | External, Internal | External, Internal | External | External, Internal |
| Voltage - Supply, Analog | 11.4V ~ 16.5V | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V | 11.4V ~ 16.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V | 2.7V ~ 5.25V | 2.7V ~ 5.25V | 2.7V ~ 5.25V | 2.7V ~ 5.25V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±2 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 32-TQFP | 32-TQFP | 32-TQFP | 32-TQFP | 32-TQFP |
| Supplier Device Package | 32-TQFP (7x7) | 32-TQFP (7x7) | 32-TQFP (7x7) | 32-TQFP (7x7) | 32-TQFP (7x7) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
