Please send RFQ , we will respond immediately.

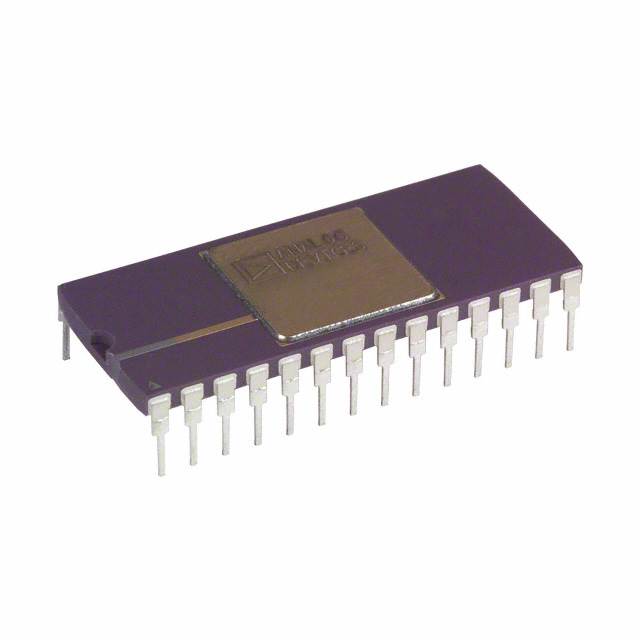

| Part Number | AD574AJD | AD574AKD | AD574AJDZ | AD574ASD | AD574ATD | AD574AUD | AD574AJE | AD574ALD | AD574AJN | AD574AJP |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete | Active | Obsolete | Obsolete |
| Number of Bits | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Sampling Rate (Per Second) | - | - | - | - | - | - | - | - | - | - |
| Number of Inputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Input Type | Single Ended | Single Ended | Single Ended | Single Ended | Single Ended | Single Ended | Single Ended | Single Ended | Single Ended | Single Ended |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Configuration | ADC | ADC | ADC | ADC | ADC | ADC | S/H-ADC | ADC | ADC | ADC |
| Ratio - S/H:ADC | - | - | - | - | - | - | 1:1 | - | - | - |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Architecture | SAR | SAR | SAR | SAR | SAR | SAR | SAR | SAR | SAR | SAR |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | 5V | 5V | 5V | 5V | 5V | 5V | ±11.4V ~ 16.5V | 5V | 5V | 5V |
| Features | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Package / Case | 28-CDIP (0.600", 15.24mm) | 28-CDIP (0.600", 15.24mm) | 28-CDIP (0.600", 15.24mm) | 28-CDIP (0.600", 15.24mm) | 28-CDIP (0.600", 15.24mm) | 28-CDIP (0.600", 15.24mm) | 28-CLCC | 28-CDIP (0.600", 15.24mm) | 28-DIP (0.600", 15.24mm) | 28-LCC (J-Lead) |
| Supplier Device Package | 28-CDIP | 28-CDIP | 28-CDIP | 28-CDIP | 28-CDIP | 28-CDIP | 28-CLCC (11.43x11.43) | 28-CDIP | 28-PDIP | 28-PLCC (11.51x11.51) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Surface Mount |
