Please send RFQ , we will respond immediately.
| Part Number | AD5677RBCPZ-1 | AD5679RBCPZ-1 | AD5677RBCPZ-2 | AD5673RBCPZ-1 | AD5674RBCPZ-1 |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Number of Bits | 16 | 16 | 16 | 12 | 12 |
| Number of D/A Converters | 16 | 16 | 16 | 16 | 16 |
| Settling Time | 8µs | 8µs | 8µs | 8µs | 8µs |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No | No |
| Data Interface | I²C | SPI, DSP | I²C | I²C | SPI, DSP |
| Reference Type | Internal | Internal | Internal | Internal | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 1.8V ~ 5.5V |
| INL/DNL (LSB) | ±1.8LSB, ±0.7LSB | ±0.18LSB, ±0.7LSB | ±1.8LSB, ±0.7LSB | ±0.12LSB, ±0.05LSB | ±1.8, ±0.7 |
| Architecture | String DAC | String DAC | String DAC | String DAC | String DAC |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |

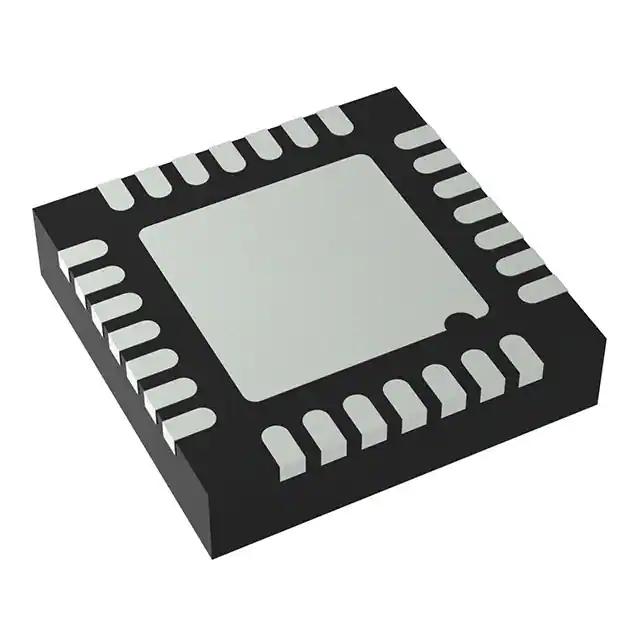

| Package / Case | 28-VFQFN Exposed Pad, CSP | 28-VFQFN Exposed Pad, CSP | 28-VFQFN Exposed Pad, CSP | 28-VFQFN Exposed Pad, CSP | 28-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 28-LFCSP (4x4) | 28-LFCSP (4x4) | 28-LFCSP (4x4) | 28-LFCSP (4x4) | 28-LFCSP (4x4) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
