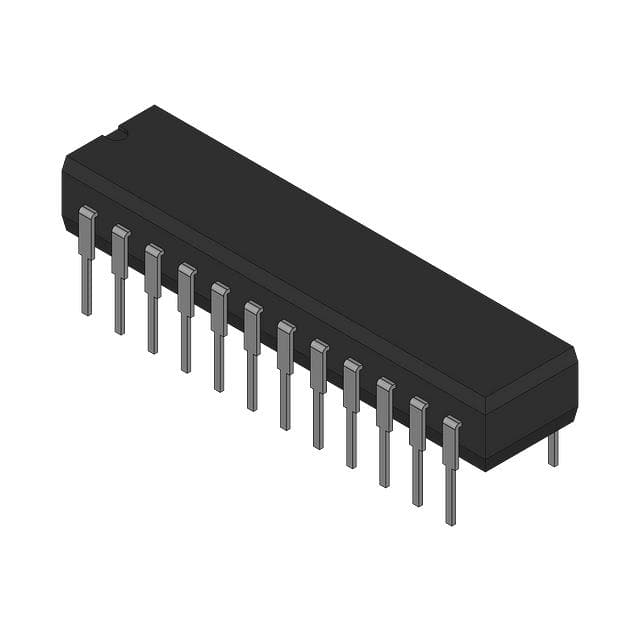

AD566ASD/883B Image
×
Favorite
Compare
Add to RFQ
Share:
Analog Devices Inc. AD566ASD/883B
Manufacturer No:
AD566ASD/883B
Manufacturer:
Analog Devices Inc.
Package:
Bulk
Datasheet:
AD566ASD/883B Datasheet
ECAD Model:
-
Description:
DAC, 12-BIT, BIPOLAR
Delivery:
Payment:
Product Attributes
Number of Bits:
12
Number of D/A Converters:
1
Settling Time:
400ns
Output Type:
Voltage - Buffered
Differential Output:
No
Data Interface:
-
Reference Type:
External
Voltage - Supply, Analog:
±11.4V ~ 16.5V
Voltage - Supply, Digital:
±11.4V ~ 16.5V
INL/DNL (LSB):
±0.25, ±0.5
Architecture:
Multiplying DAC
Operating Temperature:
-55°C ~ 125°C
Package / Case:
24-CDIP (0.300", 7.62mm)
Supplier Device Package:
24-CDIP
Mounting Type:
Through Hole
0
Remaining
View Similar
In Stock
UnitPrice:
$187.31
Quantity:
4
