Please send RFQ , we will respond immediately.
| Part Number | AD563TD/BCD | AD563JD/BCD | AD563KD/BCD | AD563SD/BCD |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 | 12 |
| Number of D/A Converters | 1 | 1 | 1 | 1 |
| Settling Time | 1.5µs (Typ) | 1.5µs (Typ) | 1.5µs (Typ) | 1.5µs (Typ) |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | No | No | No | No |
| Data Interface | - | - | - | - |
| Reference Type | Internal | Internal | Internal | Internal |
| Voltage - Supply, Analog | 4.75V ~ 15.8V | 4.75V ~ 15.8V | 4.75V ~ 15.8V | 4.75V ~ 15.8V |
| Voltage - Supply, Digital | 4.75V ~ 15.8V | 4.75V ~ 15.8V | 4.75V ~ 15.8V | 4.75V ~ 15.8V |
| INL/DNL (LSB) | ±0.5 (Max), ±0.5 (Max) | ±0.5 (Max), ±0.5 (Max) | ±0.5 (Max), ±0.5 (Max) | ±0.5 (Max), ±0.5 (Max) |
| Architecture | Multiplying DAC | Multiplying DAC | Multiplying DAC | Multiplying DAC |
| Operating Temperature | -55°C ~ 125°C | 0°C ~ 70°C | 0°C ~ 70°C | -55°C ~ 125°C |

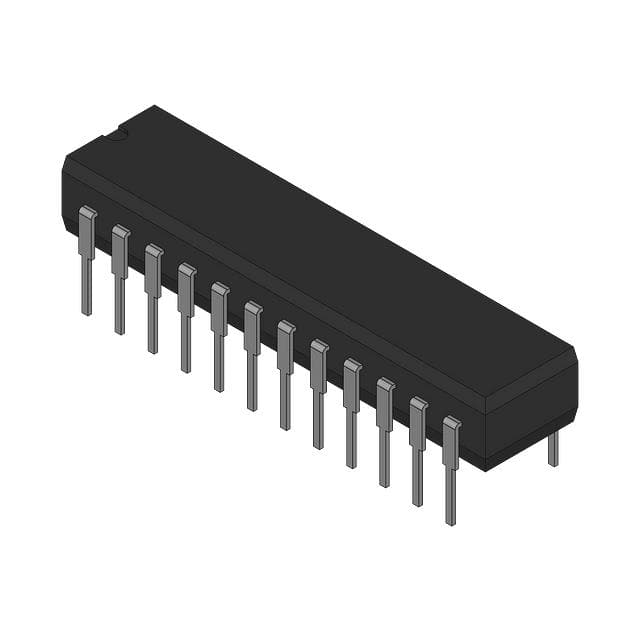

| Package / Case | 24-CDIP (0.300", 7.62mm) | 24-CDIP (0.300", 7.62mm) | 24-CDIP (0.300", 7.62mm) | 24-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 24-CDIP | 24-CDIP | 24-CDIP | 24-CDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
