Please send RFQ , we will respond immediately.

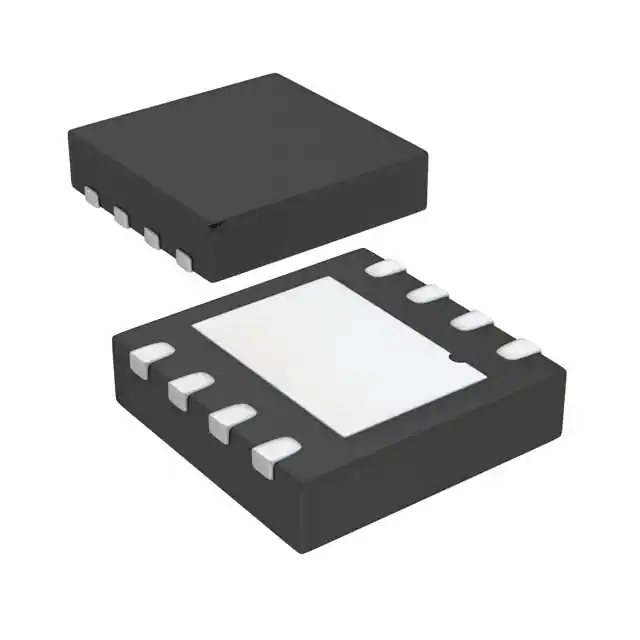

| Part Number | AD5626BCPZ-REEL7 | AD5627BCPZ-REEL7 | AD5624BCPZ-REEL7 | AD5625BCPZ-REEL7 |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 | 12 |
| Number of D/A Converters | 1 | 2 | 4 | 4 |
| Settling Time | 16µs (Typ) | 4.5µs | 4.5µs | 4.5µs |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No |
| Data Interface | SPI, DSP | I²C | SPI, DSP | I²C |
| Reference Type | Internal | External | External | External |
| Voltage - Supply, Analog | 5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±0.25, ±0.75 | ±0.5, ±0.25 (Max) | ±0.5, ±0.25 (Max) | ±1, ±1 (Max) |
| Architecture | R-2R | String DAC | String DAC | String DAC |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Package / Case | 8-VDFN Exposed Pad, CSP | 10-VFDFN Exposed Pad, CSP | 10-VFDFN Exposed Pad, CSP | 10-VFDFN Exposed Pad, CSP |
| Supplier Device Package | 8-LFCSP-WD (3x3) | 10-LFCSP-WD (3x3) | 10-LFCSP-WD (3x3) | 10-LFCSP-WD (3x3) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
