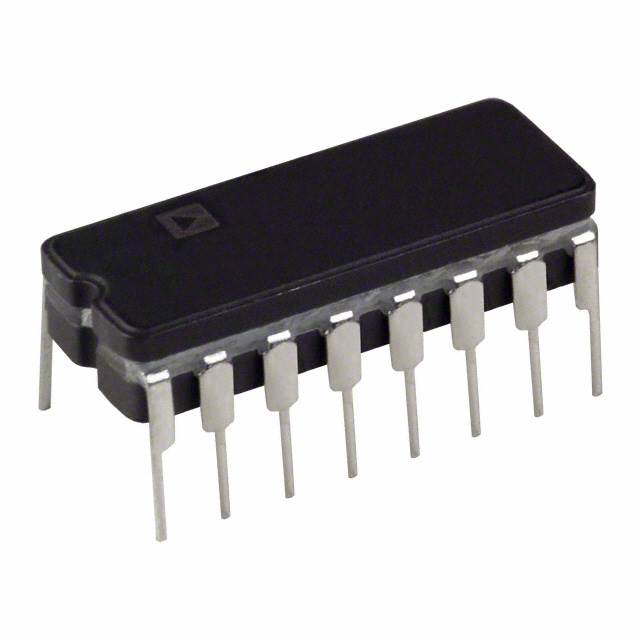

| Part Number | AD558TD/883B | AD558TE/883B | AD558SD/883B |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Number of Bits | 8 | 8 | 8 |
| Number of D/A Converters | 1 | 1 | 1 |
| Settling Time | 3µs | 3µs | 1.5µs |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Unbuffered |
| Differential Output | No | No | No |
| Data Interface | Parallel | Parallel | I²L |
| Reference Type | Internal | Internal | Internal |
| Voltage - Supply, Analog | 4.5V ~ 16.5V, 11.4V ~ 16.5V | 4.5V ~ 16.5V | 4.5V ~ 16.5V |
| Voltage - Supply, Digital | 4.5V ~ 16.5V, 11.4V ~ 16.5V | 4.5V ~ 16.5V | 4.5V ~ 16.5V |
| INL/DNL (LSB) | ±0.25 | ±0.375 (Max), - | ±2.5, ±2 |
| Architecture | R-2R | R-2R | R-2R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 20-CLCC | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP | 20-CLCC (9x9) | 16-CDIP |
| Mounting Type | Through Hole | Surface Mount | Through Hole |
