Please send RFQ , we will respond immediately.

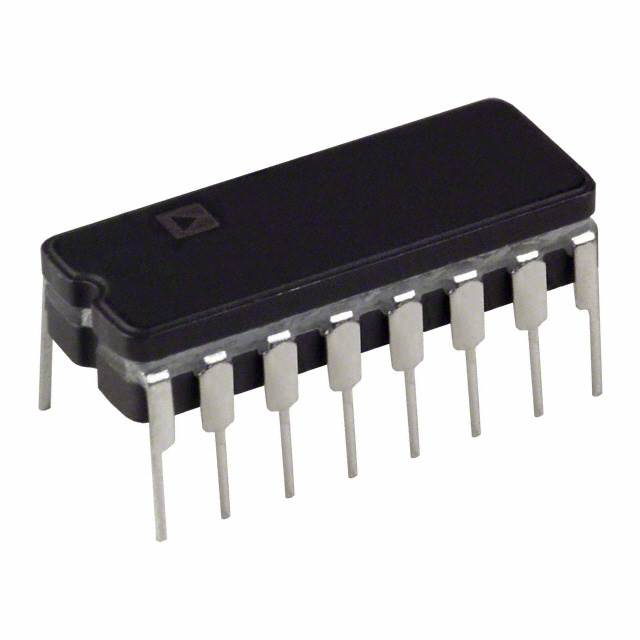

| Part Number | AD558SD/883B | AD558TD/883B | AD558SE/883B |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Number of Bits | 8 | 8 | - |
| Number of D/A Converters | 1 | 1 | - |
| Settling Time | 1.5µs | 3µs | - |
| Output Type | Voltage - Unbuffered | Voltage - Buffered | - |
| Differential Output | No | No | - |
| Data Interface | I²L | Parallel | - |
| Reference Type | Internal | Internal | - |
| Voltage - Supply, Analog | 4.5V ~ 16.5V | 4.5V ~ 16.5V, 11.4V ~ 16.5V | - |
| Voltage - Supply, Digital | 4.5V ~ 16.5V | 4.5V ~ 16.5V, 11.4V ~ 16.5V | - |
| INL/DNL (LSB) | ±2.5, ±2 | ±0.25 | - |
| Architecture | R-2R | R-2R | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | - |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | - |
| Supplier Device Package | 16-CDIP | 16-CDIP | - |
| Mounting Type | Through Hole | Through Hole | - |
