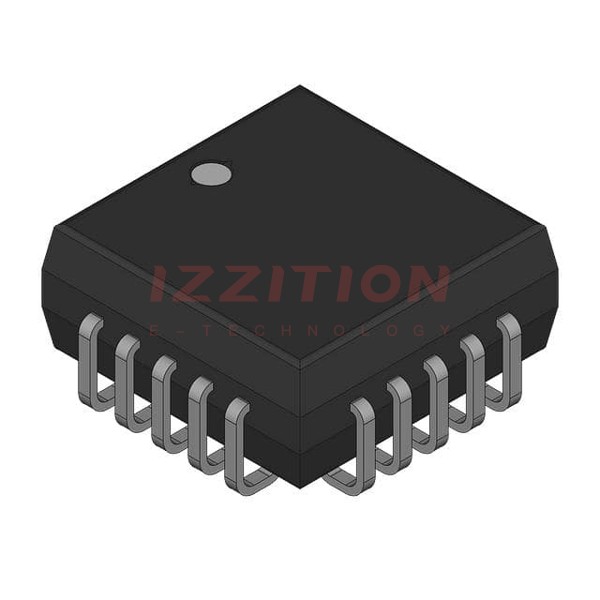

| Part Number | AD558JP-REEL | AD558JP-REEL7 | AD557JP-REEL |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Obsolete | Obsolete |
| Number of Bits | 8 | 8 | 8 |
| Number of D/A Converters | 1 | 1 | 1 |
| Settling Time | 3µs | 3µs | 1.5µs |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Unbuffered |
| Differential Output | No | No | No |
| Data Interface | Parallel | Parallel | Parallel |
| Reference Type | Internal | Internal | Internal |
| Voltage - Supply, Analog | 4.5V ~ 16.5V | 4.5V ~ 16.5V | 5V |
| Voltage - Supply, Digital | 4.5V ~ 16.5V | 4.5V ~ 16.5V | 5V |
| INL/DNL (LSB) | ±0.25 | ±0.5 (Max), - | ±0.5, - |
| Architecture | R-2R | R-2R | R-2R |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Package / Case | 20-LCC (J-Lead) | 20-LCC (J-Lead) | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (8.97x8.97) | 20-PLCC (9x9) | 20-PLCC (9x9) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
