Please send RFQ , we will respond immediately.
| Part Number | AD549LH | AD549LHZ | AD542LH | AD544LH | AD547LH | AD549JH |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Active | Active | Active | Obsolete |
| Amplifier Type | General Purpose | General Purpose | J-FET | J-FET | J-FET | General Purpose |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 |
| Output Type | - | - | - | - | - | - |
| Slew Rate | 3V/µs | 3V/µs | 3V/µs | 13V/µs | 3V/µs | 3V/µs |
| Gain Bandwidth Product | 1 MHz | 1 MHz | - | - | - | 1 MHz |
| -3db Bandwidth | - | - | 50 kHz | 50 kHz | 50 kHz | - |
| Current - Input Bias | 0.04 pA | 0.04 pA | 10 pA | 10 pA | 10 pA | 0.15 pA |
| Voltage - Input Offset | 300 µV | 300 µV | 500 µV | 500 µV | 250 µV | 500 µV |
| Current - Supply | 600µA | 600µA | 1.1mA | 1.8mA | 1.1mA | 600µA |
| Current - Output / Channel | 20 mA | 20 mA | 25 mA | 25 mA | 25 mA | 20 mA |
| Voltage - Supply Span (Min) | 10 V | 10 V | 10 V | 10 V | 10 V | 10 V |
| Voltage - Supply Span (Max) | 36 V | 36 V | 36 V | 36 V | 36 V | 36 V |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

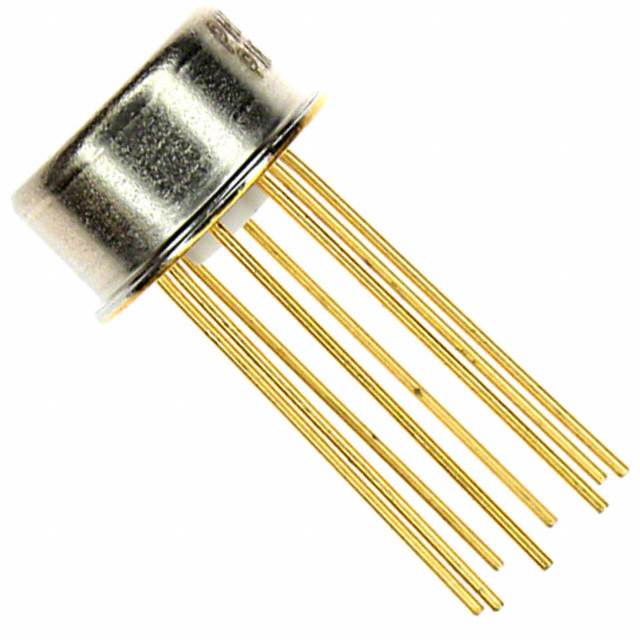

| Package / Case | TO-99-8 Metal Can | TO-99-8 Metal Can | TO-99-8 Metal Can | TO-99-8 Metal Can | TO-99-8 Metal Can | TO-99-8 Metal Can |
| Supplier Device Package | TO-99-8 | TO-99-8 | TO-99-8 | TO-99-8 | TO-99-8 | TO-99-8 |
