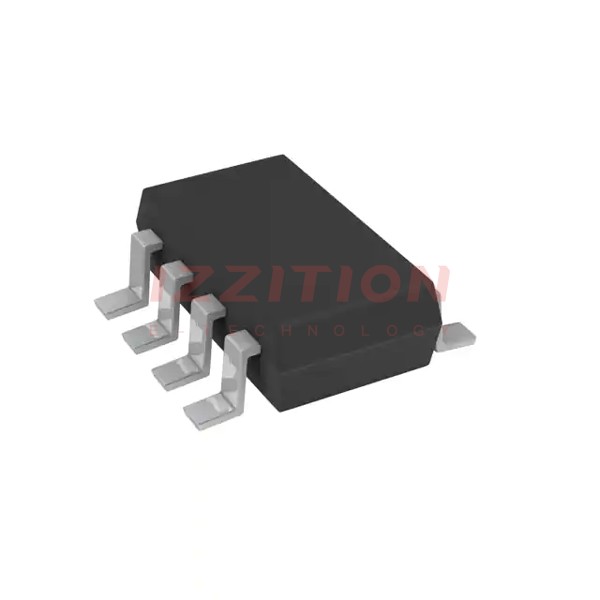

| Part Number | AD5450YUJZ-REEL | AD5450YUJZ-REEL7 | AD5451YUJZ-REEL | AD5452YUJZ-REEL | AD5453YUJZ-REEL |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Number of Bits | 8 | 8 | 10 | 12 | 14 |
| Number of D/A Converters | 1 | 1 | 1 | 1 | 1 |
| Settling Time | 110ns | 110ns | 110ns | 110ns | 110ns |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | No | No | No | No | No |
| Data Interface | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP |
| Reference Type | External | External | External | External | External |
| Voltage - Supply, Analog | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V |
| Voltage - Supply, Digital | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V |
| INL/DNL (LSB) | ±0.25 (Max), ±0.5 (Max) | ±0.25 (Max), ±0.5 (Max) | ±0.25 (Max), ±0.5 (Max) | ±0.5 (Max), ±1 (Max) | ±2 (Max), -1/+2 (Max) |
| Architecture | R-2R | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Package / Case | SOT-23-8 Thin, TSOT-23-8 | SOT-23-8 Thin, TSOT-23-8 | SOT-23-8 Thin, TSOT-23-8 | SOT-23-8 Thin, TSOT-23-8 | SOT-23-8 Thin, TSOT-23-8 |
| Supplier Device Package | TSOT-23-8 | TSOT-23-8 | TSOT-23-8 | TSOT-23-8 | TSOT-23-8 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
