| Part Number | AD5422ACPZ-REEL | AD5422ACPZ-REEL7 | AD5422BCPZ-REEL | AD5412ACPZ-REEL | AD5420ACPZ-REEL |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Number of Bits | 16 | 16 | 16 | 12 | 16 |
| Number of D/A Converters | 1 | 1 | 1 | 1 | 1 |
| Settling Time | 25µs (V), 40µs (A) (Typ) | 25µs (V), 40µs (A) (Typ) | 25µs (V), 40µs (A) (Typ) | 25µs (V), 40µs (A) (Typ) | 40µs |
| Output Type | Voltage or Current - Buffered | Voltage or Current - Buffered | Voltage or Current - Buffered | Voltage or Current - Buffered | Current - Buffered |
| Differential Output | No | No | No | No | No |
| Data Interface | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 10.8V ~ 40V, -3V ~ 26.4V | 10.8V ~ 40V, -3V ~ 26.4V | 10.8V ~ 40V, -3V ~ 26.4V | 10.8V ~ 40V, -3V ~ 26.4V | 10.8V ~ 60V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| INL/DNL (LSB) | -, ±1.3 (Max) | -, ±1.3 (Max) | -, ±1.3 (Max) | -, ±1 (Max) | -, ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C |

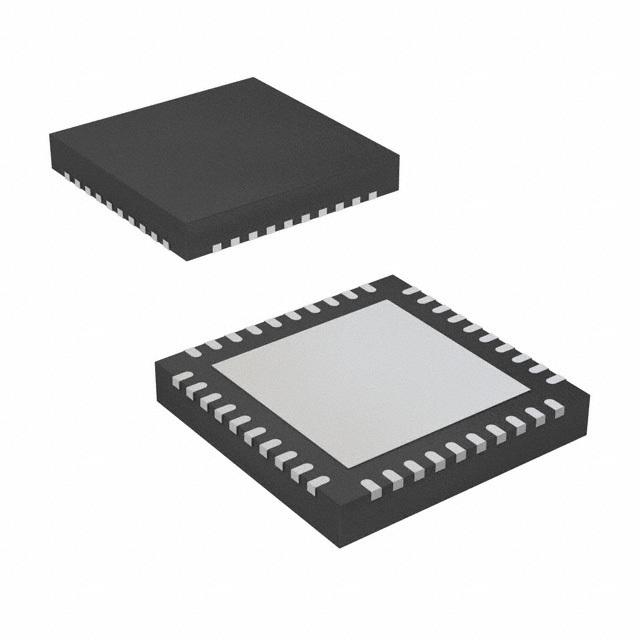

| Package / Case | 40-VFQFN Exposed Pad, CSP | 40-VFQFN Exposed Pad, CSP | 40-VFQFN Exposed Pad, CSP | 40-VFQFN Exposed Pad, CSP | 40-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 40-LFCSP-VQ (6x6) | 40-LFCSP-VQ (6x6) | 40-LFCSP-VQ (6x6) | 40-LFCSP-VQ (6x6) | 40-LFCSP-VQ (6x6) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
