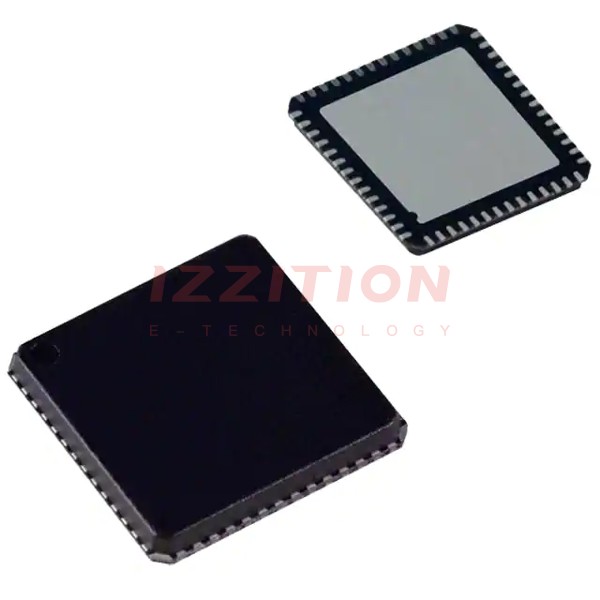

| Part Number | AD5361BCPZ | AD5362BCPZ | AD5360BCPZ |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Number of Bits | 14 | 16 | 16 |
| Number of D/A Converters | 16 | 8 | 16 |
| Settling Time | 30µs | 30µs | 30µs |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No |
| Data Interface | SPI, DSP | SPI, DSP | SPI, DSP |
| Reference Type | External | External | External |
| Voltage - Supply, Analog | 8V ~ 16.5V, -4.5V ~ 16.5V | 8V ~ 16.5V, -4.5V ~ 16.5V | 8V ~ 16.5V, -4.5V ~ 16.5V |
| Voltage - Supply, Digital | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) | ±4 (Max), ±1 (Max) | ±4 (Max), ±1 (Max) |
| Architecture | String DAC | String DAC | String DAC |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 56-VFQFN Exposed Pad, CSP | 56-VFQFN Exposed Pad, CSP | 56-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 56-LFCSP-VQ (8x8) | 56-LFCSP-VQ (8x8) | 56-LFCSP-VQ (8x8) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
