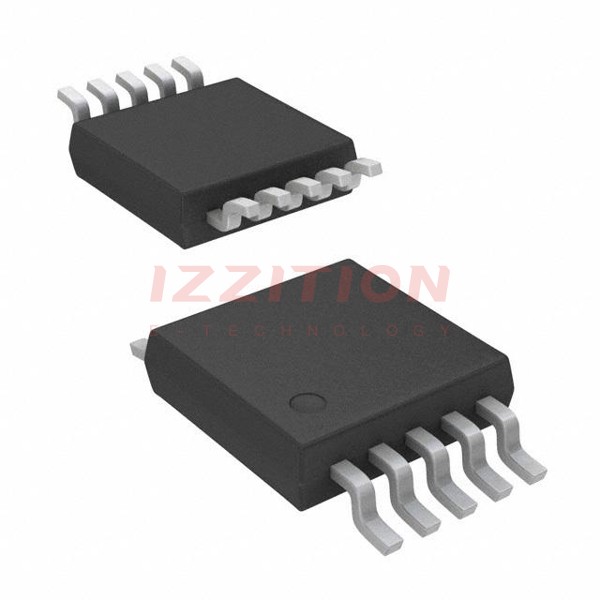

| Part Number | AD5314BRM-REEL | AD5314BRMZ-REEL | AD5324BRM-REEL | AD5314BRM-REEL7 | AD5304BRM-REEL | AD5310BRM-REEL | AD5312BRM-REEL |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Number of Bits | 10 | 10 | 12 | 10 | 8 | 10 | 10 |
| Number of D/A Converters | 4 | 4 | 4 | 4 | 4 | 1 | 2 |
| Settling Time | 9µs | 9µs | 10µs | 9µs | 8µs | 8µs | 9µs |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No | No | No | No |
| Data Interface | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP | SPI, DSP |
| Reference Type | External | External | External | External | External | Supply | External |
| Voltage - Supply, Analog | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.7V ~ 5.5V | 2.5V ~ 5.5V |
| Voltage - Supply, Digital | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.7V ~ 5.5V | 2.5V ~ 5.5V |
| INL/DNL (LSB) | ±0.5, ±0.05 | ±0.5, ±0.05 | ±2, ±0.2 | ±0.5, ±0.05 | ±0.15, ±0.02 | ±4 (Max), ±0.5 (Max) | ±0.5, ±0.05 |
| Architecture | String DAC | String DAC | String DAC | String DAC | String DAC | String DAC | String DAC |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP | 10-MSOP | 10-MSOP | 10-MSOP | 10-MSOP | 8-MSOP | 10-MSOP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
