Please send RFQ , we will respond immediately.
| Part Number | AD5305BRM | AD5305BRMZ | AD5315BRM | AD5300BRM | AD5301BRM | AD5302BRM | AD5304BRM | AD5305ARM |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Number of Bits | - | 8 | 10 | 8 | 8 | 8 | 8 | - |
| Number of D/A Converters | - | 4 | 4 | 1 | 1 | 2 | 4 | - |
| Settling Time | - | 8µs | 9µs | 6µs | 8µs | 8µs | 8µs | - |
| Output Type | - | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | - |
| Differential Output | - | No | No | No | No | No | No | - |
| Data Interface | - | I²C | I²C | SPI, DSP | I²C | SPI, DSP | SPI, DSP | - |
| Reference Type | - | External | External | Supply | Supply | External | External | - |
| Voltage - Supply, Analog | - | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.7V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | - |
| Voltage - Supply, Digital | - | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.7V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | - |
| INL/DNL (LSB) | - | ±0.15, ±0.02 | ±0.5, ±0.05 | ±1 (Max), ±0.25 (Max) | ±0.15, ±0.02 | ±0.15, ±0.02 | ±0.15, ±0.02 | - |
| Architecture | - | String DAC | String DAC | String DAC | String DAC | String DAC | String DAC | - |
| Operating Temperature | - | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | - |

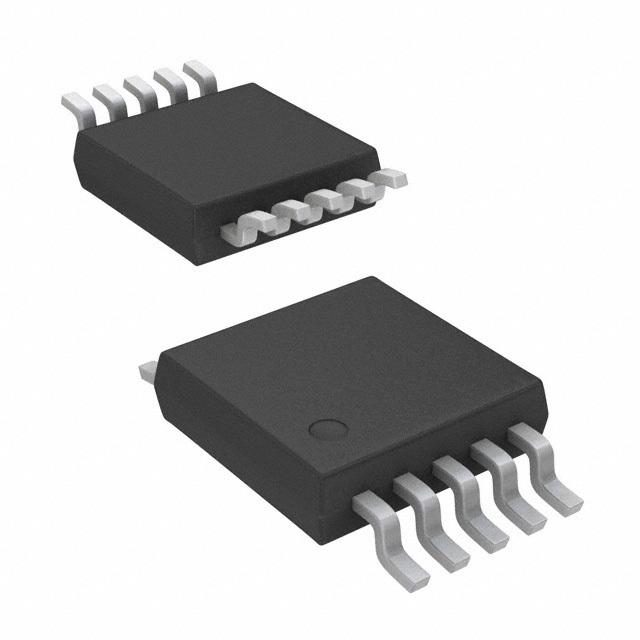

| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP | 10-MSOP | 10-MSOP | 8-MSOP | 8-MSOP | 10-MSOP | 10-MSOP | 10-MSOP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
