Please send RFQ , we will respond immediately.

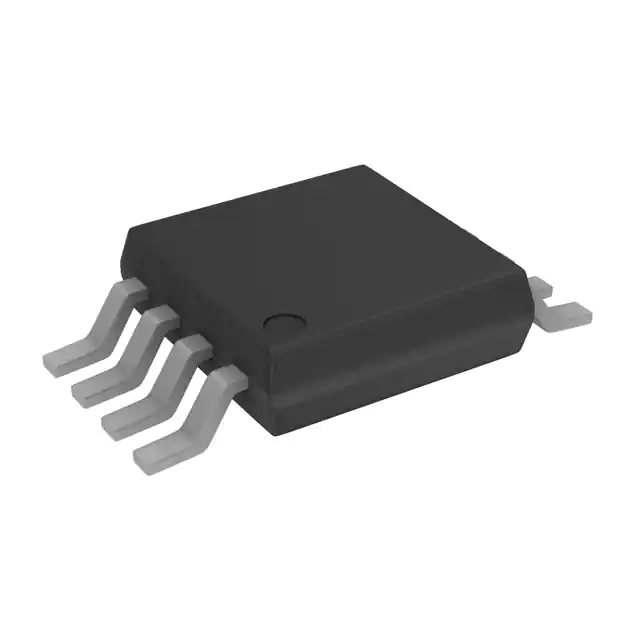

| Part Number | AD5301BRMZ-REEL7 | AD5302BRMZ-REEL7 | AD5304BRMZ-REEL7 | AD5305BRMZ-REEL7 | AD5301BRTZ-REEL7 | AD5311BRMZ-REEL7 | AD5300BRMZ-REEL7 | AD5301BRM-REEL7 | AD5301BRMZ-REEL |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Obsolete | Obsolete |
| Number of Bits | 8 | 8 | 8 | 8 | 8 | 10 | 8 | 8 | 8 |
| Number of D/A Converters | 1 | 2 | 4 | 4 | 1 | 1 | 1 | 1 | 1 |
| Settling Time | 8µs | 8µs | 8µs | 8µs | 8µs | 9µs | 6µs | 8µs | 8µs |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No | No | No | No | No | No |
| Data Interface | I²C | SPI, DSP | SPI, DSP | I²C | I²C | I²C | SPI, DSP | I²C | I²C |
| Reference Type | Supply | External | External | External | Supply | Supply | Supply | Supply | Supply |
| Voltage - Supply, Analog | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.7V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V |
| Voltage - Supply, Digital | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.7V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V |
| INL/DNL (LSB) | ±0.15, ±0.02 | ±0.15, ±0.02 | ±0.15, ±0.02 | ±0.15, ±0.02 | ±0.15, ±0.02 | ±0.5, ±0.05 | ±1 (Max), ±0.25 (Max) | ±0.15, ±0.02 | ±0.15, ±0.02 |
| Architecture | String DAC | String DAC | String DAC | String DAC | String DAC | String DAC | String DAC | String DAC | String DAC |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | SOT-23-6 | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP | 10-MSOP | 10-MSOP | 10-MSOP | SOT-23-6 | 8-MSOP | 8-MSOP | 8-MSOP | 8-MSOP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
