AD526CD
  • Share:

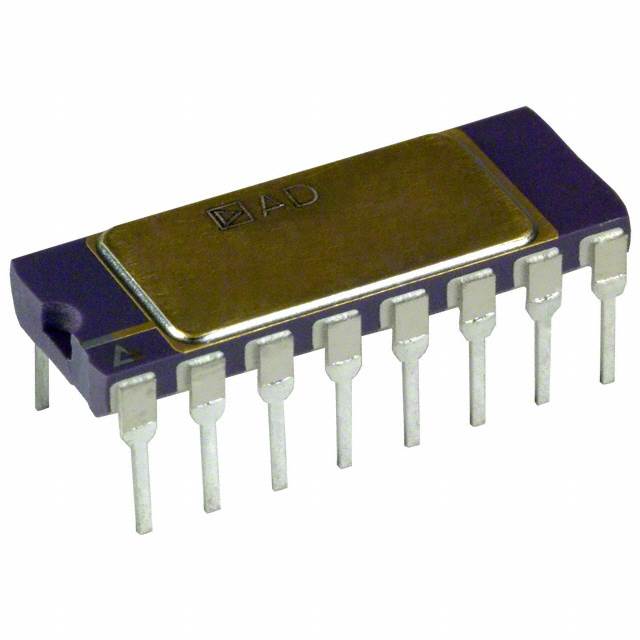

Analog Devices Inc. AD526CD

Manufacturer No:
AD526CD
Manufacturer:
Analog Devices Inc.
Package:
Tube
Datasheet:
AD526CD Datasheet
ECAD Model:
-
Description:
IC OPAMP PGA 1 CIRCUIT 16CDIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Amplifier Type:Programmable Gain
Number of Circuits:1
Output Type:-
Slew Rate:24V/µs
Gain Bandwidth Product:-
-3db Bandwidth:4 MHz
Current - Input Bias:50 pA
Voltage - Input Offset:250 µV
Current - Supply:10mA
Current - Output / Channel:10 mA
Voltage - Supply Span (Min):9 V
Voltage - Supply Span (Max):33 V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Through Hole
Package / Case:16-CDIP (0.300", 7.62mm)
Supplier Device Package:16-CDIP
0 Remaining View Similar

In Stock

$45.76
4

Please send RFQ , we will respond immediately.

Similar Products

Part Number AD526CD AD526SD   AD526CDZ   AD524CD   AD526AD   AD526BD
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc.
Product Status Obsolete Active Active Active Active Active
Amplifier Type Programmable Gain Programmable Gain Programmable Gain Instrumentation Programmable Gain Programmable Gain
Number of Circuits 1 1 1 1 1 1
Output Type - - - - - -
Slew Rate 24V/µs 24V/µs 24V/µs 5V/µs 24V/µs 24V/µs
Gain Bandwidth Product - - - 1 MHz - -
-3db Bandwidth 4 MHz 4 MHz 4 MHz 1 MHz 4 MHz 4 MHz
Current - Input Bias 50 pA 50 pA 50 pA 15 nA 50 pA 50 pA
Voltage - Input Offset 250 µV 250 µV 250 µV 50 µV 250 µV 250 µV
Current - Supply 10mA 10mA 10mA 3.5mA 10mA 10mA
Current - Output / Channel 10 mA 10 mA 10 mA - 10 mA 10 mA
Voltage - Supply Span (Min) 9 V 9 V 9 V 12 V 9 V 9 V
Voltage - Supply Span (Max) 33 V 33 V 33 V 36 V 33 V 33 V
Operating Temperature -40°C ~ 85°C -55°C ~ 125°C -40°C ~ 85°C -25°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
Package / Case 16-CDIP (0.300", 7.62mm) 16-CDIP (0.300", 7.62mm) 16-CDIP (0.300", 7.62mm) 16-CDIP (0.300", 7.62mm) 16-CDIP (0.300", 7.62mm) 16-CDIP (0.300", 7.62mm)
Supplier Device Package 16-CDIP 16-CDIP 16-CDIP 16-CDIP 16-CDIP 16-CDIP
