Please send RFQ , we will respond immediately.

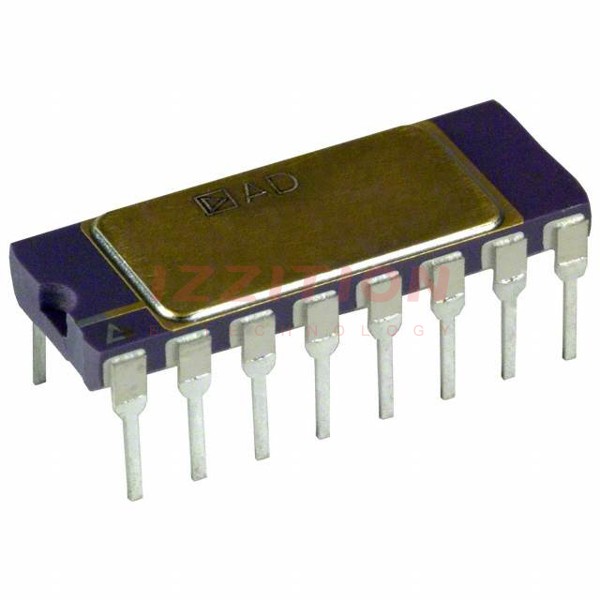

| Part Number | AD526ADZ | AD526BDZ | AD526CDZ | AD524ADZ | AD526AD |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Amplifier Type | Programmable Gain | Programmable Gain | Programmable Gain | Instrumentation | Programmable Gain |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Output Type | - | - | - | - | - |
| Slew Rate | 24V/µs | 24V/µs | 24V/µs | 5V/µs | 24V/µs |
| Gain Bandwidth Product | - | - | - | 1 MHz | - |
| -3db Bandwidth | 4 MHz | 4 MHz | 4 MHz | 1 MHz | 4 MHz |
| Current - Input Bias | 50 pA | 50 pA | 50 pA | 50 nA | 50 pA |
| Voltage - Input Offset | 250 µV | 250 µV | 250 µV | 250 µV | 250 µV |
| Current - Supply | 10mA | 10mA | 10mA | 3.5mA | 10mA |
| Current - Output / Channel | 10 mA | 10 mA | 10 mA | - | 10 mA |
| Voltage - Supply Span (Min) | 9 V | 9 V | 9 V | 12 V | 9 V |
| Voltage - Supply Span (Max) | 33 V | 33 V | 33 V | 36 V | 33 V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP | 16-CDIP | 16-CDIP | 16-CDIP | 16-CDIP |
