Please send RFQ , we will respond immediately.

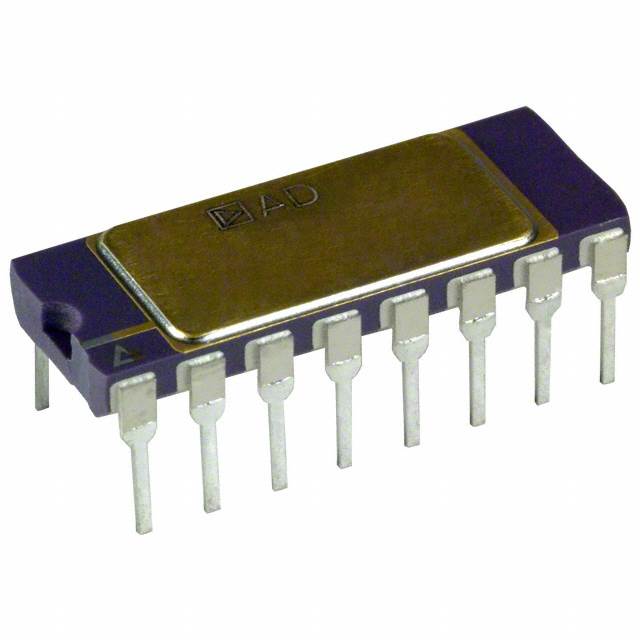

| Part Number | AD524SD/883B | AD526SD/883B | AD524SE/883B | AD521SD/883B | AD522SD/883B |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Last Time Buy |
| Amplifier Type | Instrumentation | Programmable Gain | Instrumentation | Instrumentation | Instrumentation |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Output Type | - | - | - | - | - |
| Slew Rate | 5V/µs | 24V/µs | 5V/µs | 10V/µs | 0.1V/µs |
| Gain Bandwidth Product | 1 MHz | 350 kHz | 1 MHz | - | 1.5 kHz |
| -3db Bandwidth | 1 MHz | 4 MHz | 1 MHz | 2 MHz | 300 kHz |
| Current - Input Bias | 50 nA | 50 pA | 50 nA | 80 nA | 25 nA |
| Voltage - Input Offset | 100 µV | 250 µV | 100 µV | 3 mV | 200 µV |
| Current - Supply | 3.5mA | 10mA | 3.5mA | 5mA | 10mA |
| Current - Output / Channel | - | 10 mA | - | - | - |
| Voltage - Supply Span (Min) | 12 V | 9 V | 12 V | 10 V | 10 V |
| Voltage - Supply Span (Max) | 36 V | 33 V | 36 V | 36 V | 36 V |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 20-CLCC | 14-CDIP (0.300", 7.62mm) | 14-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP | 16-SBDIP | 20-CLCC (8.89x8.89) | 14-CDIP | 14-CERDIP |
