Please send RFQ , we will respond immediately.
| Part Number | AD524CD | AD524CE | AD524CDZ | AD524SD | AD526CD | AD524AD | AD524BD |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Obsolete | Active | Active |
| Amplifier Type | Instrumentation | Instrumentation | Instrumentation | Instrumentation | Programmable Gain | Instrumentation | Instrumentation |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Output Type | - | - | - | - | - | - | - |
| Slew Rate | 5V/µs | 5V/µs | 5V/µs | 5V/µs | 24V/µs | 5V/µs | 5V/µs |
| Gain Bandwidth Product | 1 MHz | 1 MHz | 1 MHz | 1 MHz | - | 1 MHz | 1 MHz |
| -3db Bandwidth | 1 MHz | - | 1 MHz | 1 MHz | 4 MHz | 1 MHz | 1 MHz |
| Current - Input Bias | 15 nA | 15 nA | 15 nA | 50 nA | 50 pA | 50 nA | 25 nA |
| Voltage - Input Offset | 50 µV | 50 µV | 50 µV | 100 µV | 250 µV | 250 µV | 100 µV |
| Current - Supply | 3.5mA | 3.5mA | 3.5mA | 3.5mA | 10mA | 3.5mA | 3.5mA |
| Current - Output / Channel | - | - | - | - | 10 mA | - | - |
| Voltage - Supply Span (Min) | 12 V | 12 V | 12 V | 12 V | 9 V | 12 V | 12 V |
| Voltage - Supply Span (Max) | 36 V | 36 V | 36 V | 36 V | 33 V | 36 V | 36 V |
| Operating Temperature | -25°C ~ 85°C | -40°C ~ 85°C | -25°C ~ 85°C | -55°C ~ 125°C | -40°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

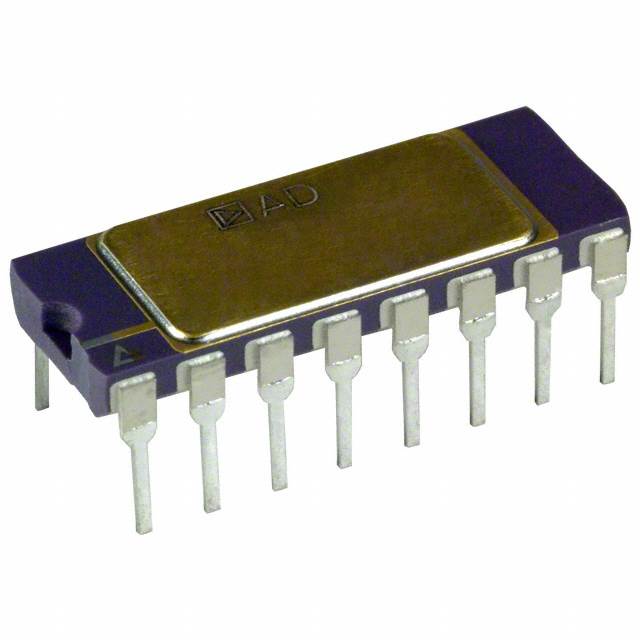

| Package / Case | 16-CDIP (0.300", 7.62mm) | 20-CLCC | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP | 20-CLCC (8.89x8.89) | 16-CDIP | 16-CDIP | 16-CDIP | 16-CDIP | 16-CDIP |
