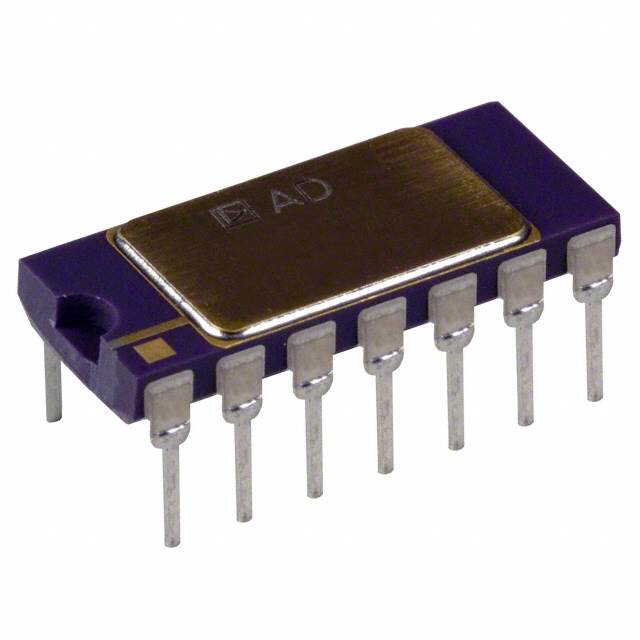

| Part Number | AD522BD | AD526BD | AD524BD |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Active |
| Amplifier Type | Instrumentation | Programmable Gain | Instrumentation |
| Number of Circuits | 1 | 1 | 1 |
| Output Type | - | - | - |
| Slew Rate | 0.1V/µs | 24V/µs | 5V/µs |
| Gain Bandwidth Product | 1.5 kHz | - | 1 MHz |
| -3db Bandwidth | 300 kHz | 4 MHz | 1 MHz |
| Current - Input Bias | 25 nA | 50 pA | 25 nA |
| Voltage - Input Offset | 200 µV | 250 µV | 100 µV |
| Current - Supply | 8mA | 10mA | 3.5mA |
| Current - Output / Channel | - | 10 mA | - |
| Voltage - Supply Span (Min) | 10 V | 9 V | 12 V |
| Voltage - Supply Span (Max) | 36 V | 33 V | 36 V |
| Operating Temperature | -25°C ~ 85°C | -40°C ~ 85°C | -25°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | 14-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 14-CERDIP | 16-CDIP | 16-CDIP |
