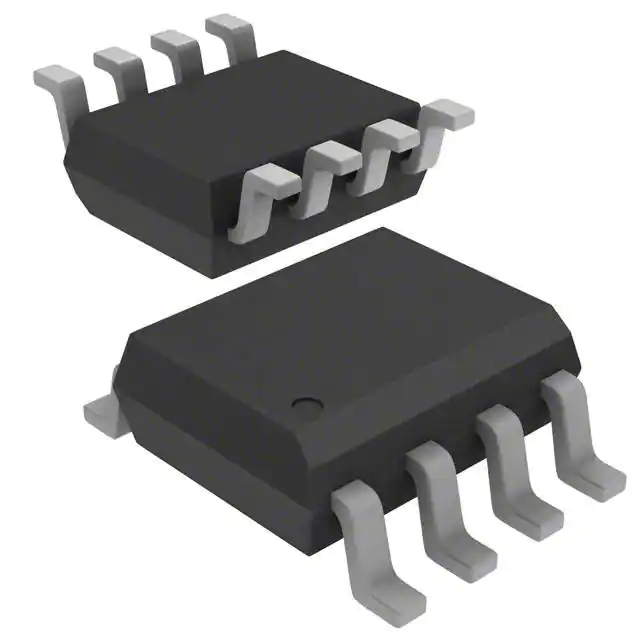

| Part Number | AD5220BR100 | AD5220BRZ100 | AD5220BRM100 | AD5222BR100 | AD5220BN100 | AD5220BR10 |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Taper | Linear | Linear | Linear | - | - | Linear |
| Configuration | Potentiometer | Potentiometer | Potentiometer | - | - | Potentiometer |
| Number of Circuits | 1 | 1 | 1 | 2 | 1 | 1 |
| Number of Taps | 128 | 128 | 128 | 128 | 128 | 128 |
| Resistance (Ohms) | 100k | 100k | 100k | 100k | 100k | 10k |
| Interface | Up/Down (U/D, CS) | Up/Down (U/D, CS) | Up/Down (U/D, CS) | - | - | Up/Down (U/D, CS) |
| Memory Type | Volatile | Volatile | Volatile | Volatile | Volatile | Volatile |
| Voltage - Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V, ±2.3V ~ 2.7V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Features | - | - | - | - | - | - |
| Tolerance | ±30% | ±30% | ±30% | - | - | ±30% |
| Temperature Coefficient (Typ) | 800ppm/°C | 800ppm/°C | 800ppm/°C | -35ppm/°C | 800ppm/°C | 800ppm/°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount |
| Supplier Device Package | 8-SOIC | 8-SOIC | 8-MSOP | 14-SOIC | 8-PDIP | 8-SOIC |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 14-SOIC (0.154", 3.90mm Width) | 8-DIP (0.300", 7.62mm) | 8-SOIC (0.154", 3.90mm Width) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Resistance - Wiper (Ohms) (Typ) | 40 | 40 | 40 | - | - | 40 |
