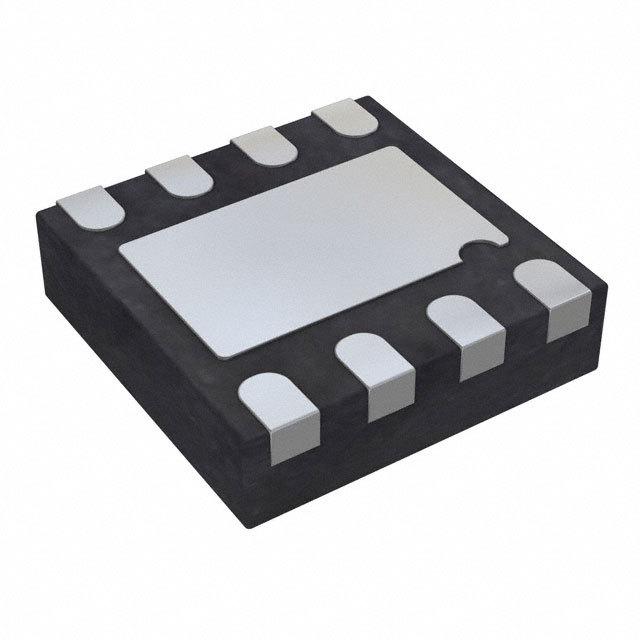

| Part Number | AD5114BCPZ10-RL7 | AD5124BCPZ10-RL7 | AD5116BCPZ10-RL7 | AD5144BCPZ10-RL7 | AD5114BCPZ80-RL7 | AD5115BCPZ10-RL7 | AD5110BCPZ10-RL7 | AD5111BCPZ10-RL7 | AD5112BCPZ10-RL7 | AD5113BCPZ10-RL7 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Taper | Linear | Linear | Linear | Linear | Linear | Linear | Linear | Linear | Linear | Linear |
| Configuration | Potentiometer | Potentiometer | Potentiometer | Potentiometer | Potentiometer | Potentiometer | Potentiometer | Potentiometer | Potentiometer | Potentiometer |
| Number of Circuits | 1 | 4 | 1 | 4 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Taps | 32 | 128 | 64 | 256 | 32 | 32 | 128 | 128 | 64 | 64 |
| Resistance (Ohms) | 10k | 10k | 10k | 10k | 80k | 10k | 10k | 10k | 10k | 10k |
| Interface | I²C | I²C, SPI | Pushbutton | I²C, SPI | I²C | Up/Down (U/D, CS) | I²C | Up/Down (U/D, CS) | I²C | Up/Down (U/D, CS) |
| Memory Type | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile |
| Voltage - Supply | 1.8V ~ 5.5V, 2.3V ~ 5.5V | 2.3V ~ 5.5V, ±2.25V ~ 2.75V | 2.3V ~ 5.5V | 2.3V ~ 5.5V, ±2.25V ~ 2.75V | 1.8V ~ 5.5V, 2.3V ~ 5.5V | 2.3V ~ 5.5V | 1.8V ~ 5.5V, 2.3V ~ 5.5V | 2.3V ~ 5.5V | 1.8V ~ 5.5V, 2.3V ~ 5.5V | 2.3V ~ 5.5V |
| Features | - | Cascade Pin, Selectable Address | - | Cascade Pin, Selectable Address | - | - | - | - | - | - |
| Tolerance | ±8% | ±8% | ±8% | ±8% | ±8% | ±8% | ±8% | ±8% | ±8% | ±8% |
| Temperature Coefficient (Typ) | 35ppm/°C | 35ppm/°C | 35ppm/°C | 35ppm/°C | 35ppm/°C | 35ppm/°C | 35ppm/°C | 35ppm/°C | 35ppm/°C | 35ppm/°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-LFCSP-UD (2x2) | 24-LFCSP-WQ (4x4) | 8-LFCSP-UD (2x2) | 24-LFCSP-WQ (4x4) | 8-LFCSP-UD (2x2) | 8-LFCSP-UD (2x2) | 8-LFCSP-UD (2x2) | 8-LFCSP-UD (2x2) | 8-LFCSP-UD (2x2) | 8-LFCSP-UD (2x2) |
| Package / Case | 8-UFDFN Exposed Pad, CSP | 24-WFQFN Exposed Pad, CSP | 8-UFDFN Exposed Pad, CSP | 24-WFQFN Exposed Pad, CSP | 8-UFDFN Exposed Pad, CSP | 8-UFDFN Exposed Pad, CSP | 8-UFDFN Exposed Pad, CSP | 8-UFDFN Exposed Pad, CSP | 8-UFDFN Exposed Pad, CSP | 8-UFDFN Exposed Pad, CSP |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Resistance - Wiper (Ohms) (Typ) | 70 | 55 | 70 | 55 | 70 | 70 | 70 | 70 | 70 | 70 |
