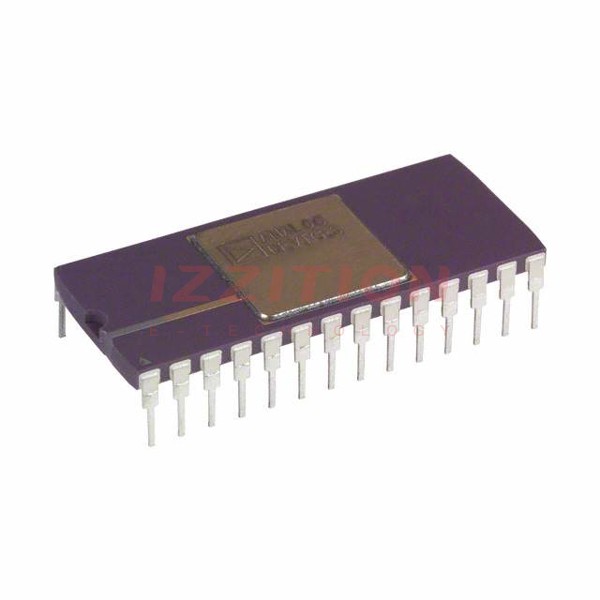

| Part Number | AD390JD | AD395JD | AD394JD | AD390TD | AD390KD | AD390SD |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Active | Active | Active | Obsolete |
| Number of Bits | 12 | 12 | 12 | 12 | 12 | 12 |
| Number of D/A Converters | 4 | 4 | 4 | 4 | 4 | 4 |
| Settling Time | 8µs | - | 15µs | 8µs | 8µs | 8µs |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No | No | No |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Reference Type | External, Internal | External | External | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | ±13.5V ~ 16.5V | ±13.5V ~ 16.5V | 13.5V ~ 16.5V | ±13.5V ~ 16.5V | ±13.5V ~ 16.5V | ±13.5V ~ 16.5V |
| Voltage - Supply, Digital | - | ±13.5V ~ 16.5V | 13.5V ~ 16.5V | - | - | - |
| INL/DNL (LSB) | ±0.25, ±0.5 | - | - | ±0.25, ±0.5 | ±0.25, ±0.5 | ±0.25, ±0.5 |
| Architecture | - | Multiplying DAC | Multiplying DAC | - | - | - |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | -55°C ~ 125°C | 0°C ~ 70°C | -55°C ~ 125°C |
| Package / Case | 28-CDIP (0.600", 15.24mm) | 28-CDIP (0.600", 15.24mm) | 28-CDIP (0.600", 15.24mm) | 28-CDIP (0.600", 15.24mm) | 28-CDIP (0.600", 15.24mm) | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP SB | 28-CDIP | 28-CDIP | 28-CDIP | 28-CDIP | 28-CDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
