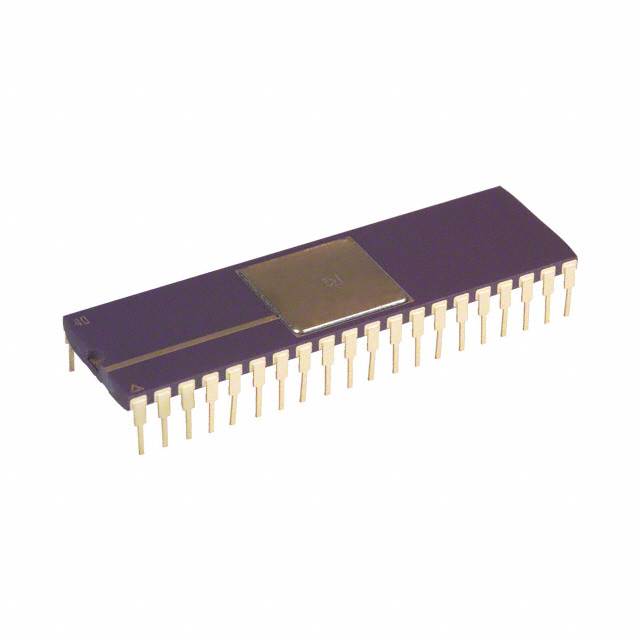

| Part Number | AD2S80AAD | AD2S80AUD | AD2S80ATD | AD2S80ABD | AD2S80ASD | AD2S80AJD | AD2S80ALD | AD2S80AKD |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | R/D Converter | R/D Converter | R/D Converter | R/D Converter | R/D Converter | R/D Converter | R/D Converter | R/D Converter |
| Number of Channels | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Resolution (Bits) | 10, 12, 14, 16 b | 10, 12, 14, 16 b | 10, 12, 14, 16 b | 10, 12, 14, 16 b | 10, 12, 14, 16 b | 10, 12, 14, 16 b | 10, 12, 14, 16 b | 10, 12, 14, 16 b |
| Sampling Rate (Per Second) | - | - | - | - | - | - | - | - |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Voltage Supply Source | Dual ± | Dual ± | Dual ± | Dual ± | Dual ± | Dual ± | Dual ± | Dual ± |
| Voltage - Supply | ±10.8V ~ 13.2V | ±10.8V ~ 13.2V | ±10.8V ~ 13.2V | ±10.8V ~ 13.2V | ±10.8V ~ 13.2V | ±10.8V ~ 13.2V | ±10.8V ~ 13.2V | ±10.8V ~ 13.2V |
| Operating Temperature | -40°C ~ 85°C | -55°C ~ 125°C | -55°C ~ 125°C | -40°C ~ 85°C | -55°C ~ 125°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 40-CDIP (0.600", 15.24mm) | 40-CDIP (0.600", 15.24mm) | 40-CDIP (0.600", 15.24mm) | 40-CDIP (0.600", 15.24mm) | 40-CDIP (0.600", 15.24mm) | 40-CDIP (0.600", 15.24mm) | 40-CDIP (0.600", 15.24mm) | 40-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 40-CDIP | 40-CDIP | 40-CDIP | 40-CDIP | 40-CDIP | 40-CDIP | 40-CDIP | 40-CDIP |
