Please send RFQ , we will respond immediately.

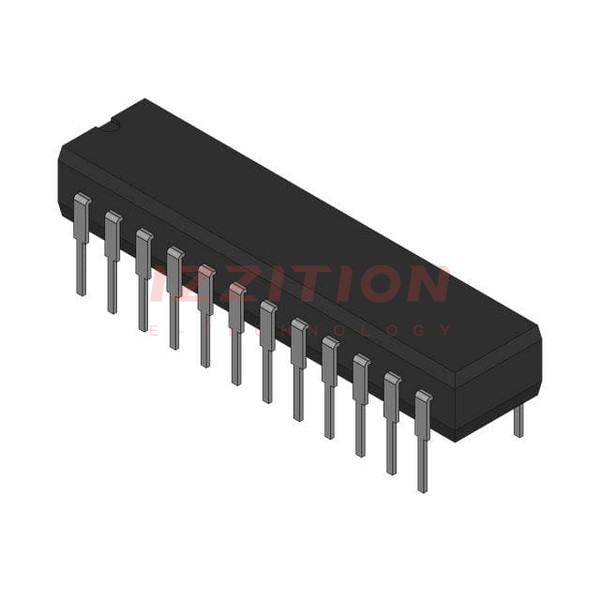

| Part Number | AD236AN | AD237AN | AD238AN | AD236AR | AD236JN | AD230AN | AD231AN | AD232AN | AD234AN |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Transceiver | Transceiver | Transceiver | Transceiver | Transceiver | Driver | Transceiver | Transceiver | Driver |
| Protocol | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 | RS232 |
| Number of Drivers/Receivers | 4/3 | 3 | 4/4 | 4/3 | 4/3 | 5/0 | 2/2 | 2/2 | 4/0 |
| Duplex | Full | Full | Full | Full | Full | - | Full | Full | - |
| Receiver Hysteresis | 500 mV | 500 mV | 500 mV | 500 mV | 500 mV | 500 mV | 500 mV | 500 mV | 500 mV |
| Data Rate | - | - | - | - | - | - | - | - | - |
| Voltage - Supply | 4.5V ~ 5.5V | 5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 5V | 4.5V ~ 5.5V, 7.5V ~ 13.2V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 24-SOIC (0.295", 7.50mm Width) | 24-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 24-PDIP | 24-PDIP | 24-PDIP | 24-SOIC | 24-PDIP | 20-DIP | 14-PDIP | 16-PDIP | 16-PDIP |
