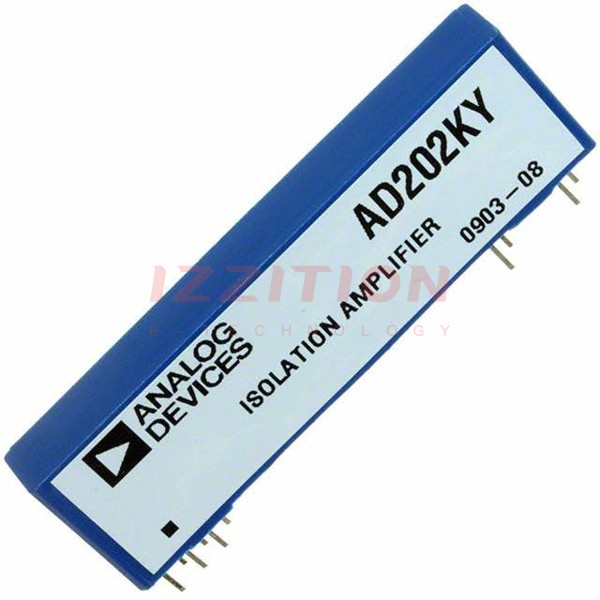

| Part Number | AD202KY | AD204KY | AD202JY | AD202KN |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Amplifier Type | Isolation | Isolation | Isolation | Isolation |
| Number of Circuits | 2 | 2 | 2 | 2 |
| Output Type | - | - | - | - |
| Slew Rate | - | - | - | - |
| Gain Bandwidth Product | 2 kHz | 5 kHz | 2 kHz | 2 kHz |
| -3db Bandwidth | - | - | - | - |
| Current - Input Bias | 30 pA | 30 pA | 30 pA | 30 pA |
| Voltage - Input Offset | 5 mV | 5 mV | 15 mV | 5 mV |
| Current - Supply | 5mA | - | 5mA | 5mA |
| Current - Output / Channel | 400 µA | 2 mA | 400 µA | 400 µA |
| Voltage - Supply Span (Min) | 13.5 V | 13.5 V | 13.5 V | 13.5 V |
| Voltage - Supply Span (Max) | 16.5 V | 16.5 V | 16.5 V | 16.5 V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 38-SIP, 11 Leads, Offset Leads | 38-SIP, 10 Leads, Offset Leads | 38-SIP, 11 Leads, Offset Leads | 38-DIP (0.600", 15.24mm), 11 Leads |
| Supplier Device Package | 11-SIP | 10-SIP | 11-SIP | 11-PDIP |
