| Part Number | 78Q2133S/F | 78Q2133SR/F | 78Q2123S/F | 78Q2133/F | 78Q2133R/F |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Not For New Designs | Not For New Designs | Obsolete | Not For New Designs | Not For New Designs |
| Type | Transceiver | Transceiver | Transceiver | Transceiver | Transceiver |
| Protocol | Ethernet | Ethernet | Ethernet | IEEE 802.3 | IEEE 802.3 |
| Number of Drivers/Receivers | 1/1 | 1/1 | 1/1 | 4/4 | 4/4 |
| Duplex | Full | Full | Full | Full | Full |
| Receiver Hysteresis | - | - | - | 125 mV | 125 mV |
| Data Rate | - | - | - | - | - |
| Voltage - Supply | 3.3V | 3.3V | 3.3V | 3V ~ 3.6V | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

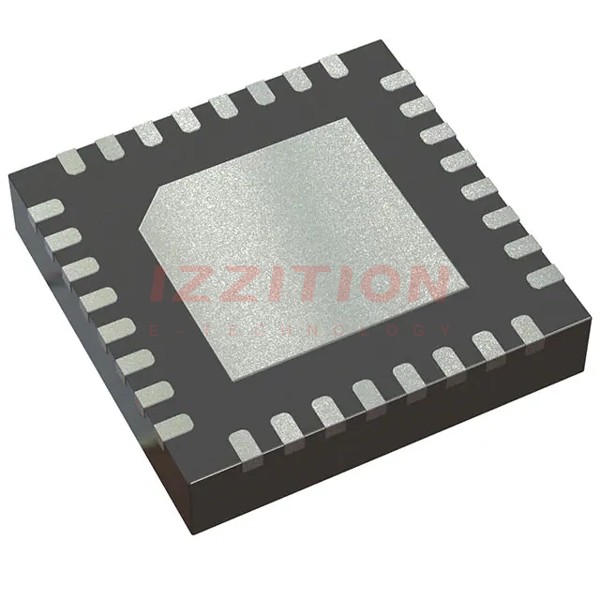

| Package / Case | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 16-WQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-TQFN (5x5) | 32-TQFN (5x5) | 16-TQFN (5x5) | 32-QFN-EP (5x5) | 32-TQFN (5x5) |
