| Part Number | 5962-9204102MEA | 5962-9204202MEA | 5962-9204101MEA |
|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active |
| Switch Circuit | SPST - NO | SP4T | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 | 4:1 | 1:1 |
| Number of Circuits | 4 | 2 | 4 |
| On-State Resistance (Max) | 85Ohm | 100Ohm | 85Ohm |
| Channel-to-Channel Matching (ΔRon) | 4Ohm (Max) | 1.5Ohm | 4Ohm (Max) |
| Voltage - Supply, Single (V+) | 10V ~ 30V | 5V ~ 30V | 10V ~ 30V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V | ±5V ~ 20V | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 250ns, 170ns | 150ns, 150ns | 250ns, 120ns |
| -3db Bandwidth | - | - | - |
| Charge Injection | 5pC | 2pC | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 4pF | 3pF, 14pF | 4pF, 4pF |
| Current - Leakage (IS(off)) (Max) | 500pA | 500pA | 500pA |
| Crosstalk | -100dB @ 1MHz | -92dB @ 100kHz | -100dB @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole |

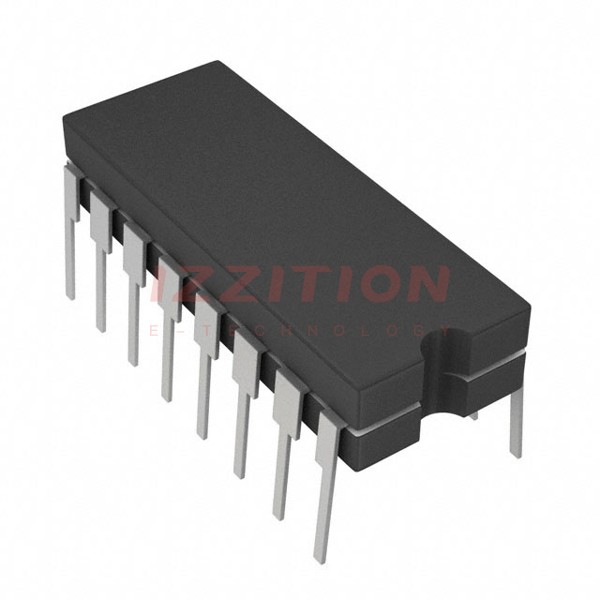

| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP | 16-CDIP | 16-CDIP |
