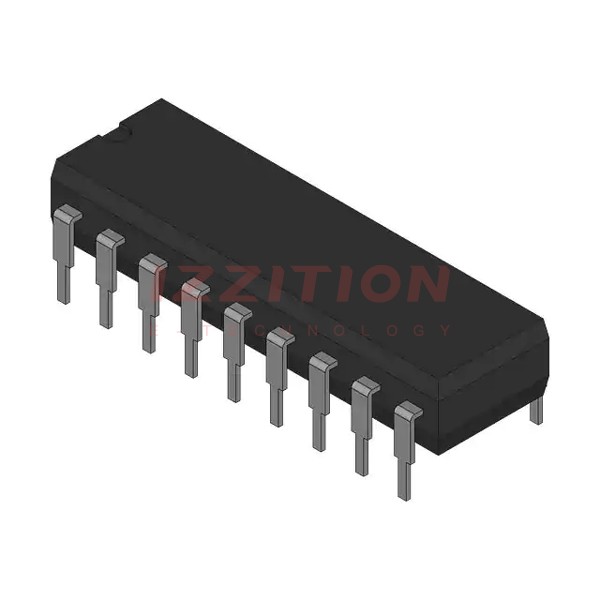

| Part Number | 5962-9090801MVA | 5962-9090801M2A |
|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active |
| Number of Bits | 8 | 8 |
| Number of D/A Converters | 1 | 1 |
| Settling Time | 20µs | 20µs |
| Output Type | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No |
| Data Interface | Parallel | Parallel |
| Reference Type | External | External |
| Voltage - Supply, Analog | 11.4V ~ 16.5V, ±5V | 11.4V ~ 16.5V, ±5V |
| Voltage - Supply, Digital | 14.25V ~ 15.75V | 14.25V ~ 15.75V |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 18-CDIP (0.300", 7.62mm) | 20-CLCC |
| Supplier Device Package | 18-CERDIP | 20-CLCC (9x9) |
| Mounting Type | Through Hole | Surface Mount |
