Please send RFQ , we will respond immediately.

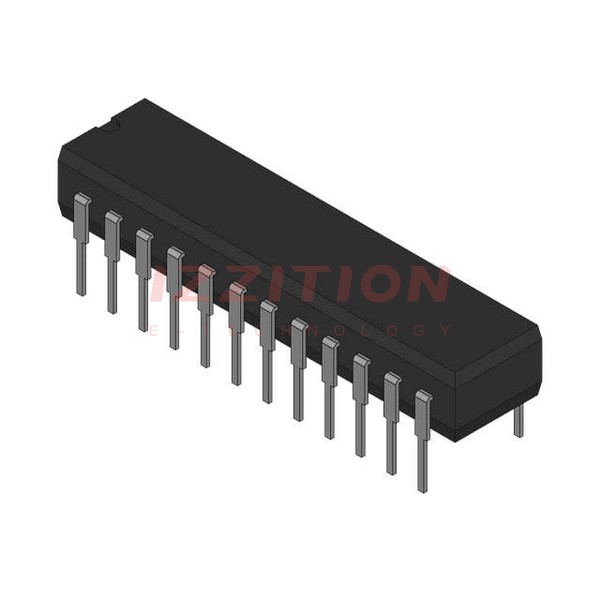

| Part Number | 5962-8965702LA | 5962-8965703LA | 5962-89657023A |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Obsolete | Active |
| Number of Bits | 12 | 12 | 12 |
| Number of D/A Converters | 2 | 2 | 2 |
| Settling Time | 1.5µs | 1.5µs | 1.5µs |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | No | No | No |
| Data Interface | Parallel | Parallel | Parallel |
| Reference Type | External | External | External |
| Voltage - Supply, Analog | 10.8V ~ 16.5V | 10.8V ~ 16.5V | 10.8V ~ 16.5V |
| Voltage - Supply, Digital | 10.8V ~ 16.5V | 10.8V ~ 16.5V | 10.8V ~ 16.5V |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) |
| Architecture | Multiplying DAC, R-2R | Multiplying DAC, R-2R | R-2R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 24-CDIP (0.300", 7.62mm) | 24-CDIP (0.300", 7.62mm) | 28-LCC |
| Supplier Device Package | 24-CDIP | 24-CDIP | 28-LCC (11.43x11.43) |
| Mounting Type | Through Hole | Through Hole | Surface Mount |
