Please send RFQ , we will respond immediately.

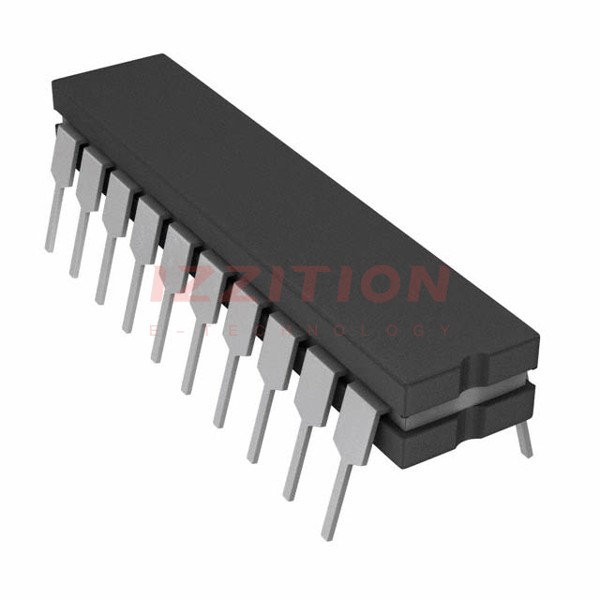

| Part Number | 5962-8876502RX | 5962-8876501RX | 5962-8876502RA |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 |
| Number of D/A Converters | 2 | 2 | 2 |
| Settling Time | 1.5µs | 1.5µs | 1.5µs |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | No | No | No |
| Data Interface | Parallel | Parallel | Parallel |
| Reference Type | External | External | External |
| Voltage - Supply, Analog | 15V | 15V | 15V |
| Voltage - Supply, Digital | 15V | 15V | 15V |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R | Multiplying DAC |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 20-CDIP (0.300", 7.62mm) | 20-CDIP (0.300", 7.62mm) | 20-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 20-CERDIP | 20-CERDIP | 20-CERDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole |
