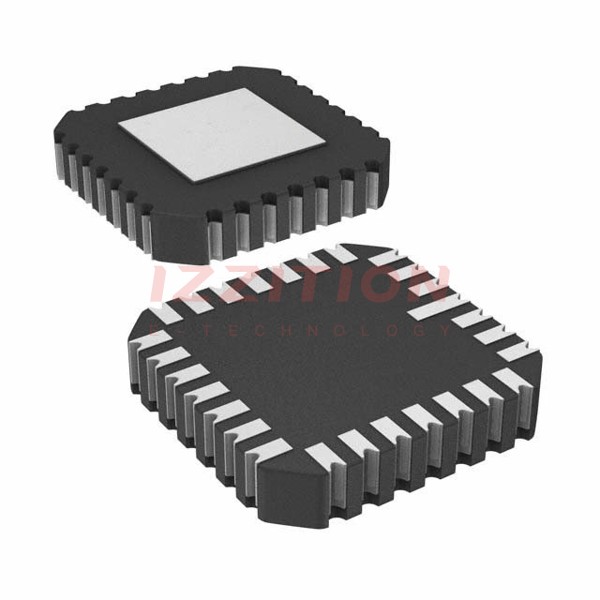

| Part Number | 5962-88663013X | 5962-8866301LX | 5962-88663023X |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Number of Bits | 8 | 8 | 8 |
| Number of D/A Converters | 8 | 8 | 8 |
| Settling Time | 5µs, 7µs | - | 5µs, 7µs |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No |
| Data Interface | Parallel | Parallel | Parallel |
| Reference Type | External | External | External |
| Voltage - Supply, Analog | 10.8V ~ 16.5V, -4.5V ~ -5.5V | 4.75V ~ 5.25V | 10.8V ~ 16.5V, -4.5V ~ -5.5V |
| Voltage - Supply, Digital | 13.5V ~ 16.5V | 10.8V ~ 16.5V | 13.5V ~ 16.5V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) | ±0.5, ±1 | ±1 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 28-LCC | 24-CDIP | 28-LCC |
| Supplier Device Package | 28-LCC (11.43x11.43) | 24-CDIP | 28-LCC (11.43x11.43) |
| Mounting Type | Surface Mount | Through Hole | Surface Mount |
